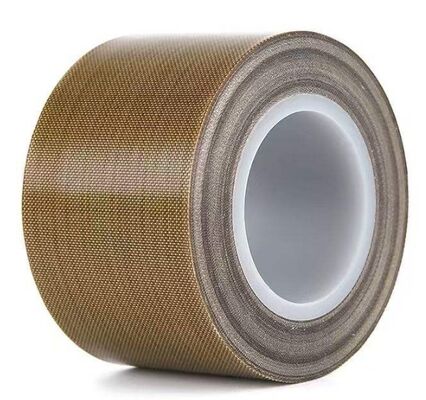

PTFE Fiberglass Adhesive Tape 0.17mm High Temperature Non-Stick Tape

Price:	based on size and quantity
Standard Packaging:	cartons and pallets
Delivery Period:	about 20 days
Payment Method:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Brand Name

UN.Tex

Temperature Resistance Test:

-70℃~260℃

High Temperature Peel Test:

260℃ No Peeling For Half An Hour

W/O Liner:

With Liner

Adhesion Test:

≥ 3

Thickness:

0.17 Mm

Total Weight:

300 G/m2

Color:

Brown

Base Fabric Weight:

250 G/m2

180° Peel Test On Steel Plate:

≥ 18 N/4cm

Highlight:

PTFE fiberglass adhesive tape 0.17mm

high temperature non-stick tape

PTFE adhesive insulation tape

Product Description

Product Overview

PTFE Fiberglass Adhesive Tape is a brown, PTFE-coated fiberglass tape engineered for industrial applications that demand heat resistance, a non-stick surface, and mechanical reinforcement. It features a 250 g/m² fiberglass backing, a total weight of 300 g/m², and a total thickness of 0.17 mm.

The PTFE coating delivers a smooth, low-friction surface that helps prevent material buildup and supports easy release. The reinforced fiberglass backing improves structural stability, while the release liner protects the adhesive before application.

With a specified temperature resistance of -70°C to +260°C, this PTFE-coated fiberglass tape is suitable for heat sealing equipment, packaging machinery, sliding surfaces, and other industrial applications involving elevated temperatures.

Technical Parameters

Total Thickness	0.17 mm
Total Weight	300 g/m²
Temperature Resistance	-70°C to +260°C

Key Features

1. Wide Temperature Resistance

With a specified temperature resistance of -70°C to +260°C, this PTFE fiberglass tape is designed for industrial environments with demanding temperature requirements. Product test data indicates that no peeling was observed after 30 minutes at 260°C under the specified high-temperature peel test conditions.

2. Reinforced Fiberglass Backing

The 250 g/m² fiberglass fabric backing provides mechanical reinforcement and helps maintain the tape's structural integrity during industrial use.

3. Non-Stick PTFE Coating

The PTFE-coated surface offers low adhesion and smooth release properties, making the tape suitable for applications where sticky materials or product buildup need to be minimized.

4. Convenient Application with Release Liner

The release liner protects the adhesive surface during storage and handling and can be removed before installation.

Typical Applications

PTFE Fiberglass Adhesive Tape is used in industrial equipment and processes that require a reinforced, non-stick tape with heat resistance. Typical applications include:

Heat sealing equipment: Provides a non-stick surface in packaging and sealing processes.
Packaging machinery: Helps reduce material adhesion on selected machine surfaces.
Guide rails and chutes: Supports smooth material movement and release.
Industrial processing equipment: Provides a release surface where material buildup needs to be reduced.
High-temperature surface protection: Suitable for selected machine components exposed to elevated temperatures.

Frequently Asked Questions

1. What is PTFE Fiberglass Adhesive Tape used for?

Typical applications include heat sealing equipment, packaging machinery, guide rails, chutes, and industrial processing surfaces requiring non-stick and heat-resistant properties.

2. What factors should be considered when selecting PTFE Fiberglass Adhesive Tape?

Consider the required tape thickness, operating temperature, adhesive compatibility, surface conditions, and duration of heat exposure to ensure suitability for the intended application.
