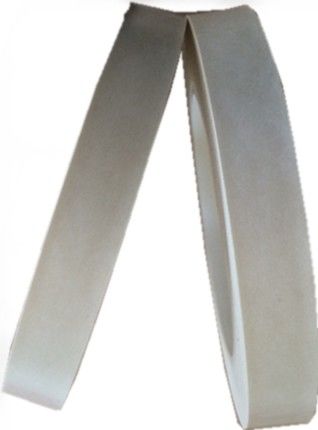

Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm

China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm

Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm
Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm

Large Image :  Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 472
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: by quote
Packaging Details: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Time: 30days
Payment Terms: T/T, D/P, L/C
Supply Ability: 10,000m2

Aramid Paper Adhesive Insulation Tape 0.18mm 10mm-980mm

Base Material: Aramid Adhesive Tape Adhesive Type: Acrylic Adhesive
Thickness: 0.18mm Roll Length: 50m
Width: 10mm~980mm Color: Natural
High Light:

Paper Adhesive Insulation Tape


Aramid Adhesive Insulation Tape


0.18mm self adhesive paper tape

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape


TX2 series aramid paper high temperature resistant tape


The customized high temperature resistant tape is made by polyaramid fiber paper, coated with acrylic pressure-sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃~155℃), and is suitable for F grade heat-resistant electrical and electrical insulation banding, mobile phone accessories insulation and lithium-manganese battery insulation banding, etc. Strong insulation protection. It can replace NOMEX tape for occasions where mechanical strength is not high



a. Good thermal stability, F-class long-term heat resistance of 155 ℃.

b. Soft and tear-resistant, strong cohesive force, not easy to deform, suitable for adhesion protection on the surface of various profiles;

c. It is suitable for wrapping the coil tightly and firmly without tilting the tape end.



※ For high-quality F-class motor and transformer coil end wrapping.

※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.

※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.


Typical properties:

Type  472
Appearance White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm 0.18±0.01
Aramid paper Thickness mm±mm 0.13±0.01
Adhesive type Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage kV ≥2.8
Tensile strength N/10mm ≥90
Elongation at break % ≥5
Adhesion (to steel surface) N/25mm ≥12.0
Ball tack cm ≤10
Heat resistance test 155℃/45min No tilting on tape end
Long-term temperature resistance F class/155℃
Flame Retardant Meet UL510 Flame Retardant
Supply size Available in rolls, roll width 10~980mm According to user requirements, roll length 50m±0.5m

* Other specifications of products can be negotiated and supplied according to user needs.

Packaging and storage:

This product is sealed in a plastic film bag and packed in a carton. Store at room temperature, pay attention to moisture and dust, and the storage period is 12 months.
