Brown PTFE Fiberglass Adhesive Tape 0.17 mm Thickness
  • name
  • name

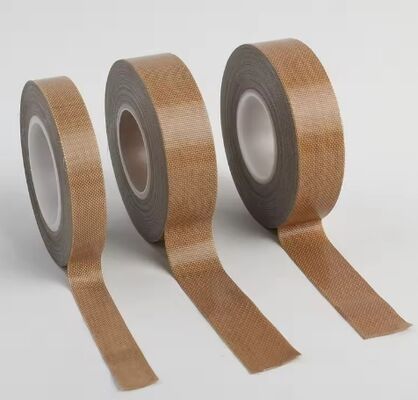

Brown PTFE Fiberglass Adhesive Tape 0.17 mm Thickness

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UN.Tex
Thickness:
0.17 Mm
High Temperature Peel Test:
260℃ No Peeling For Half An Hour
180° Peel Test On Steel Plate:
≥ 18 N/4cm
Total Weight:
300 G/m2
W/O Liner:
With Liner
Color:
Brown
Temperature Resistance Test:
-70℃~260℃
Base Fabric Weight:
250 G/m2
Adhesion Test:
≥ 3
Highlight:

Brown PTFE Fiberglass Adhesive Tape

,

0.17 mm PTFE Fiberglass Tape

,

PTFE Fiberglass Insulation Tape

Product Description
Product Overview

PTFE Fiberglass Adhesive Tape is a brown, PTFE-coated fiberglass tape designed for high-temperature industrial applications. It features a 250 g/m² fiberglass base fabric, a total weight of 300 g/m², and a total thickness of 0.17 mm.

The fiberglass backing provides structural reinforcement, while the PTFE coating offers a smooth, non-stick surface suitable for release applications. Supplied with a release liner, the tape is suitable for industrial bonding and surface protection applications involving elevated temperatures.

Technical Parameters
Color Brown
Total Thickness 0.17 mm
Base Fabric Weight 250 g/m²
Total Weight 300 g/m²
Temperature Resistance -70°C to +260°C
Release Liner With liner
Key Features
1. Wide Temperature Resistance

With a specified temperature resistance of -70°C to +260°C, this tape is designed for industrial environments involving temperature variations. According to the product data, no peeling was observed after 30 minutes at 260°C in the high-temperature peel test.

2. Reinforced Fiberglass Backing

The 250 g/m² fiberglass base fabric provides mechanical reinforcement and supports the tape structure in applications requiring a durable PTFE-coated material.

3. Non-Stick PTFE Surface

The PTFE coating provides a smooth, non-stick surface that helps reduce material adhesion and supports release performance in industrial processing.

Typical Applications

PTFE Fiberglass Adhesive Tape is suitable for industrial equipment and processes requiring a heat-resistant, reinforced tape with a non-stick surface. Typical applications include:

  • Heat sealing and packaging equipment
  • Guide rails, chutes, and sliding surfaces
  • Release surfaces for industrial processing
  • High-temperature machinery components
  • Surface protection in industrial applications
Frequently Asked Questions
1. What is the temperature resistance of this tape?

The specified temperature resistance is -70°C to +260°C. Actual service performance depends on the operating conditions and exposure duration.

2. What is the fiberglass fabric weight?

The fiberglass base fabric weighs 250 g/m², and the total tape weight is 300 g/m².

3. Does the tape come with a release liner?

Yes. The tape is supplied with a release liner to protect the adhesive surface before application.
