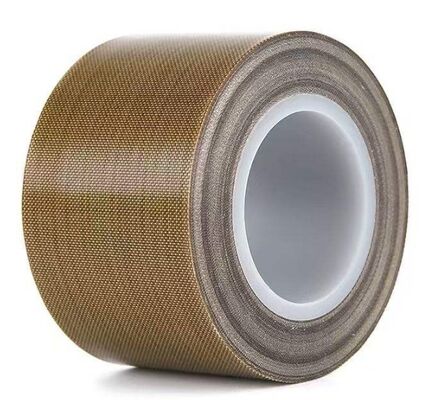

PTFE Fiberglass Adhesive Tape 0.17 mm Thickness
  • name
  • name

PTFE Fiberglass Adhesive Tape 0.17 mm Thickness

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Color:
Brown
Thickness:
0.17 Mm
Base Fabric Weight:
250 G/m2
Total Weight:
300 G/m2
180° Peel Test On Steel Plate:
≥ 18 N/4cm
Adhesion Test:
≥ 3
High Temperature Peel Test:
260℃ No Peeling For Half An Hour
Temperature Resistance Test:
-70℃~260℃
W/O Liner:
With Liner
Highlight:

PTFE fiberglass adhesive tape

,

0.17mm adhesive insulation tape

,

fiberglass tape with PTFE coating

Product Description
PTFE Fiberglass Adhesive Tape 0.17 mm Thickness
Product Overview

PTFE Fiberglass Adhesive Tape is a brown PTFE-coated fiberglass adhesive tape designed for high-temperature industrial applications. It combines a 250 g/m² fiberglass base fabric with a 300 g/m² total weight and a 0.17 mm total thickness.

The fiberglass substrate provides a reinforced tape structure, while the PTFE surface is suitable for applications requiring a smooth, release-oriented working surface. It is supplied with a release liner for convenient handling and application.

Technical Parameters
Color Brown
Total Thickness 0.17 mm
Base Fabric Weight 250 g/m²
Total Weight 300 g/m²
Temperature Resistance -70°C to +260°C
Release Liner With liner
Key Features
High-Temperature Performance

The specified temperature resistance is -70°C to +260°C. In the high-temperature peel test, it showed no peeling after 30 minutes at 260°C according to the product data.

Reinforced Fiberglass Structure

The 250 g/m² fiberglass base fabric provides mechanical reinforcement to the PTFE tape structure, making the 0.17 mm grade suitable for applications where a reinforced tape is required.

With Release Liner

It is supplied with a liner, which helps protect the adhesive surface during storage, handling, and installation.

Typical Applications

PTFE fiberglass adhesive tape can be used for industrial applications requiring a reinforced PTFE tape with high-temperature resistance and a release-oriented surface.

Typical applications include:

  • Heat sealing equipment
  • Packaging machinery
  • Guide rails, chutes, and slides
  • Release surfaces for industrial processing
  • High-temperature machinery components
  • Applications requiring PTFE fiberglass adhesive tape
Frequently Asked Questions
What is PTFE fiberglass adhesive tape?

It is a 0.17 mm PTFE fiberglass adhesive tape with a 250 g/m² fiberglass base fabric and 300 g/m² total weight. It is designed for industrial applications requiring a reinforced PTFE tape structure and high-temperature resistance.

Does it come with a release liner?

Yes. According to the product specification, it is supplied with a liner.

What is the fiberglass weight of it?

The base fiberglass fabric weight is 250 g/m², while the total product weight is 300 g/m².
