Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
  • name
  • name
  • name

Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive

Price: based on size and quantity
Standard Packaging: Cartons and pallets
Delivery Period: about 15 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
UN.Tex
Total Thickness:
128~130um
Initial Tack:
40 Mm/14#
180°Peel Strength:
420 G/25mm
Breakdown Voltage:
6000 V
Longitudinal Tensile Strength:
5.78 Kgf/25mm
Transverse Tensile Strength:
5.03 Kgf/25mm
Longitudinal Elongation:
170%
Lateral Elongation:
155%
Highlight:

flame-retardant PVC insulation tape

,

rubber-based adhesive insulation tape

,

PVC electrical tape with warranty

Product Description
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Product Overview

Flame-Retardant PVC Insulation Tape is manufactured using high-quality PVC substrate and rubber-based adhesive. This specialized tape features self-extinguishing properties when removed from fire sources, high dielectric strength, and exceptional weather resistance. It is ideally suited for insulation wrapping and protective fixing of various wires and cables.

Technical Parameters
Parameter Value
Total Thickness 128~130μm
Breakdown Voltage 6000V
Key Advantages
  • Flame-Retardant & Safe: Self-extinguishing when removed from fire, compliant with flame-retardant standards, significantly reducing fire risk
  • High Insulation & Voltage Resistance: Exceptional voltage withstand capability, anti-aging properties, prevents electrical leakage
  • Easy Tear & Application: Excellent adhesion, conformable wrapping characteristics, and residue-free removal
Applications
  • Insulation wrapping of wire joints in residential and commercial electrical installations
  • Fixing and protection of wiring harnesses in automobiles and electric vehicles
  • Cable sheath repair and electrical equipment maintenance

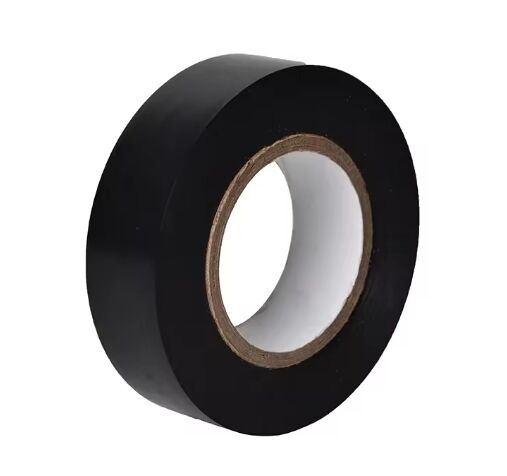

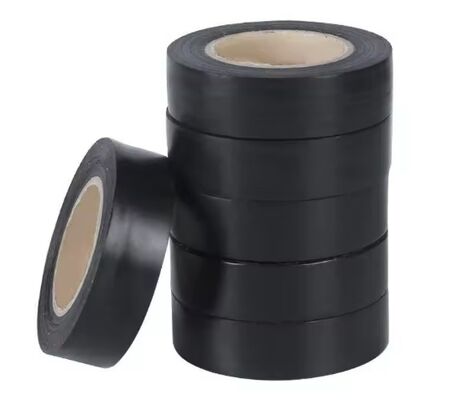

Flame-Retardant PVC Insulation Tape product illustration
