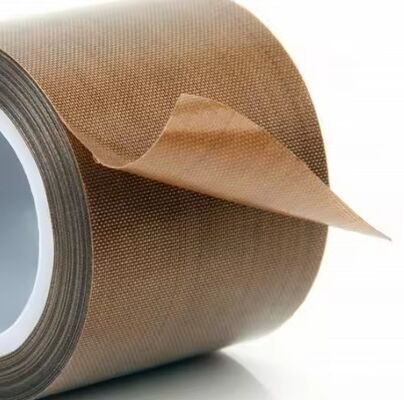

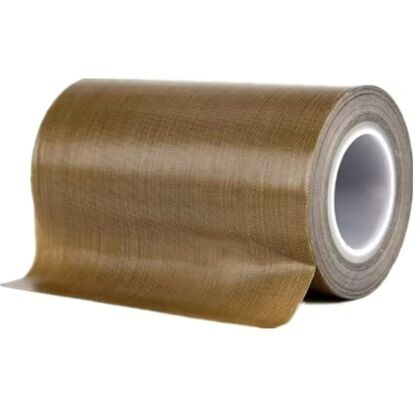

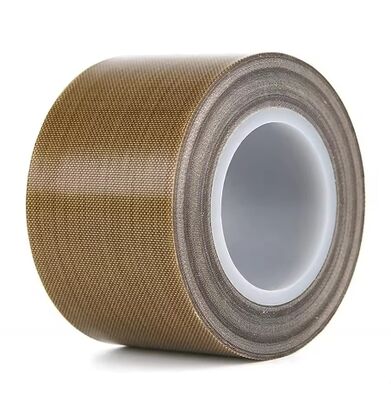

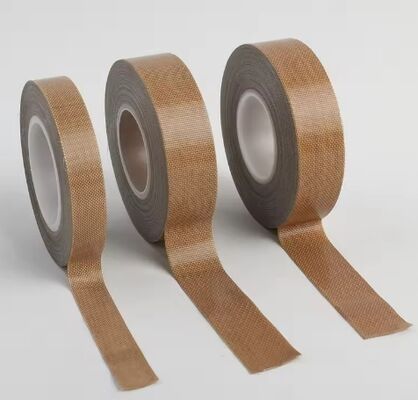

Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications

Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications
Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications

Large Image :  Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 8018TF-S
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 21 working days
Supply Ability: 50,000m2 per month
Contact Now

Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications

Description
Base Material: Imported E-glass Cloth Treated By PTFE Emulsion Adhesive Type: Silicone Adhesive
Grade: H Grade Releasing Paper: No
Base Cloth Thickness: 0.11mm Tape Thickness: 0.18mm
Color: Brown And Black Or On Request Working Temp: 220°C Long Time, 280°C Short Time
Width: 3mm~1200mm Length: 10m & 30m
Highlight:

Glass Fiber PTFE tape industrial

,

PTFE insulation tape 0.18mm

,

Reinforced adhesive tape high temperature

Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness
This glass fiber reinforced PTFE tape is engineered for demanding industrial applications. Manufactured by laminating a glass fiber mesh with PTFE film, it combines exceptional strength, wear resistance, and tear resistance while maintaining the superior properties of PTFE, including non-stick performance, high-temperature resistance, and chemical corrosion resistance.
Product Specifications
Base Thickness 0.11 mm
Total Thickness 0.18 mm
Temperature Resistance -70°C to 260°C
Color Options Brown and black, or custom colors available upon request
Key Advantages
  • Composite Reinforced Structure: The combination of glass fiber mesh and PTFE film significantly enhances mechanical strength and tear resistance, extending service life.
  • Retains Core PTFE Properties: Fully maintains the inherent advantages of PTFE, including non-stick capability, high-temperature resistance, and chemical corrosion resistance.
  • Wear and Fatigue Resistance: Reinforced surface offers excellent wear resistance, suitable for high-frequency friction and dynamic bending applications, with outstanding anti-fatigue performance.
Industrial Applications
  • Heat Sealing Equipment: Used for surface wrapping of conveyor belts in heat sealers to reduce material adhesion and withstand repeated high-temperature contact.
  • Industrial Conveyor Systems: Applied to conveyor belts handling high-temperature or corrosive materials, enhancing wear resistance and chemical corrosion protection.
  • High-Wear Protection Scenarios: Adhered to mechanical guides, rollers, or mold surfaces, providing both lubrication and anti-stick protection.
Glass Fiber Reinforced PTFE Tape 0.18 Mm Thickness For Demanding Industrial Applications 0
