F-Class Aramid Paper Insulation Tape Electrical Insulation Tape

F-Class Aramid Paper Insulation Tape Electrical Insulation Tape

MOQ: 500 SQ.M
Price: basing on size and quantity
Standard Packaging: cartons
Delivery Period: about 30 days
Payment Method: T/T
Supply Capacity: 20000rolls
Detail Information
Place of Origin
China
Model Number
432/452/472
Material:
Aramid Paper
Adhesive:
Acrylic Pressure-sensitive Adhesive
Thickness:
0.105/0.13/0.18mm
Tensile Strength:
≥ 30/45/90 N/10mm
Adhesion Strength:
≥ 12.0N/25mm
Breakdown Voltage:
≥ 1.8/2.4/2.8kV
Long-term Temperature Resistance:
F Class/155℃
Usage:
Insulation Wrapping
Highlight:

F-Class aramid paper insulation tape

,

electrical insulation tape with warranty

,

adhesive insulation tape high temperature

Product Description
F-Class Aramid Paper Insulation Tape
High-performance electrical insulation tape designed for demanding industrial applications requiring superior thermal and mechanical properties.
Product Overview
Manufactured by combining an aramid paper substrate with a flame-retardant acrylic pressure-sensitive adhesive, this insulation tape delivers excellent electrical insulation performance while meeting F-class (155°C) heat resistance requirements.
Technical Specifications
Thickness 0.105/0.13/0.18mm
Long-term Temperature Resistance F class/155℃
Key Advantages
  • High-temperature Insulation - Heat-resistant up to 155°C, maintains stable insulation under high temperatures, suitable for motors and transformers.
  • High Mechanical Strength - Tear-resistant, wear-resistant, withstands bending and vibration, ensuring strong reliability.
  • Flame-retardant Safety - Compliant with flame-retardancy standards, effectively inhibits flame spread.
Applications
  • Insulation Wrapping for Motors and Transformers - Used for insulation and fixation of windings and coils.
  • High-temperature Cable Tying and Protection - Suitable for wire harness protection in fields such as metallurgy and new energy.
  • Internal Insulation in Electronic Devices - Used for isolation and fixation of high-voltage components in power modules.

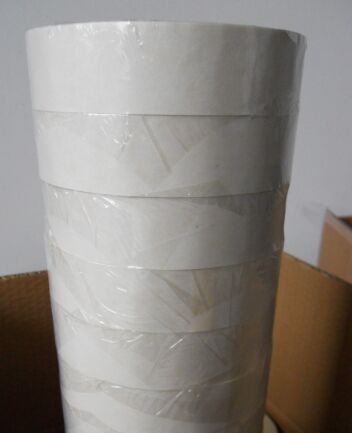

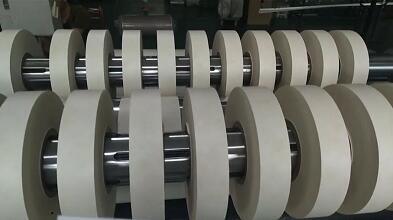

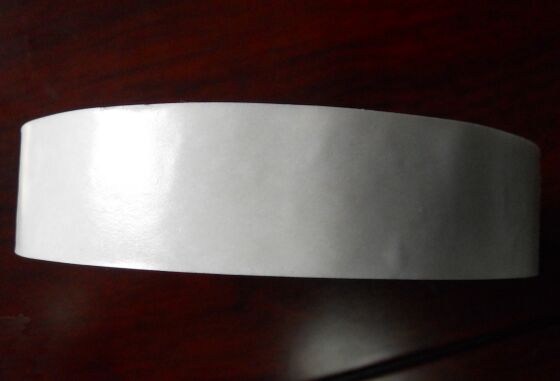

F-Class Aramid Paper Insulation Tape product image showing electrical insulation tape roll and sample applications
