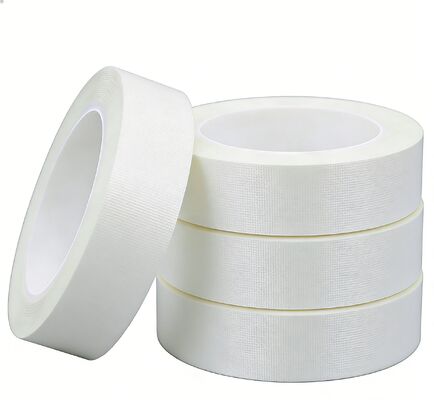

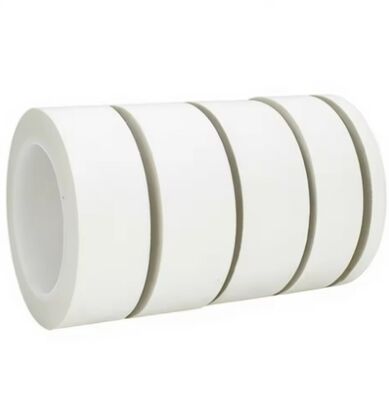

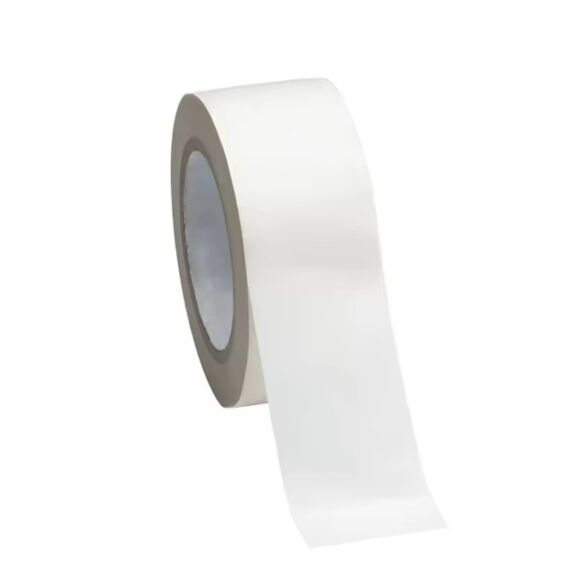

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton.
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

Model Number

Backing Material:

E-fiber Glass Cloth

Backing Thickness:

100um

Total Thickness:

160um

Adhesive Type F-Class:

Acrylic Pressure-Sensitive

Adhesion To Steel:

≥4N/10mm

Tensile Strength:

≥200N/10mm

Elongation:

Breakdown Voltage F-Class:

≥1.8kV

Service Temp.:

-30°C ~ +150°C

Tack Rolling Ball:

≤10cm

Cut Roll:

10mm~500mm Width

Roll Length:

Highlight:

glass cloth adhesive tape with liner

160 micron adhesive insulation tape

easy-release adhesive tape for insulation

Product Description

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

Product Overview

This glass cloth adhesive tape features a three-layer design with high-density glass cloth backing and strong acrylic adhesive, delivering durable bonding and reliable protection. The easy-release liner ensures smooth application for electrical insulation, mechanical fastening, and high-temperature protection applications.

Technical Specifications

Parameter	Value
Total Thickness	160 Micron
Adhesion to Steel	≥ 4N/10mm
Tensile Strength	≥ 200N/10mm
Service Temperature	-30°C ~ +150°C
Adhesive Type F-Class	Acrylic Pressure-Sensitive

Key Advantages

Excellent Durability: Flexible, tear-resistant backing ensures reliable performance in demanding conditions.
Strong Adhesion: High-quality acrylic adhesive offers lasting bonds to various surfaces.
Wide Temperature Range & Protection: Operates from -30°C to 150°C with insulation, leak-proof, and heat-resistant properties.

Applications

Reliable Insulation & Fixation: Strong adhesion and high tensile strength make it ideal for wrapping and binding transformer and motor coils, providing secure insulation.
Battery Safety Protection: Explosion-proof and leak-resistant properties ensure effective insulation wrapping for high-energy lithium-ion batteries, enhancing pack safety.
High-Temperature & Surface Protection: Suitable for high-temperature sandblasting masking and shielding applications, protecting workpiece surfaces from damage.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Suharto

Indonesia Feb 19.2026

Helpful (3)

UN.Tex has such a great selection of fabrics, it really saved me a lot of hassle with my purchasing. Thanks!

Minh

Vietnam Jan 28.2026

Helpful (5)

Thank you for helping me correct my mistake at the beginning and guiding me through the purchase smoothly. I really appreciate it.

Lee

Singapore Jan 15.2026

Helpful (3)

I recommend UN.Tex's tape, including their quality and price.

Tags:

Products

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton.
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Certification

RoHS

Model Number

652L

Backing Material:

E-fiber Glass Cloth

Backing Thickness:

100um

Total Thickness:

160um

Adhesive Type F-Class:

Acrylic Pressure-Sensitive

Adhesion To Steel:

≥4N/10mm

Tensile Strength:

≥200N/10mm

Elongation:

≥3%

Breakdown Voltage F-Class:

≥1.8kV

Service Temp.:

-30°C ~ +150°C

Tack Rolling Ball:

≤10cm

Cut Roll:

10mm~500mm Width

Roll Length:

30m

Minimum Order Quantity:

500m2

Price:

by quote

Packaging Details:

Each column shrink packed and then in export carton.

Delivery Time:

30days

Payment Terms:

T/T,D/P,L/C

Supply Ability:

10,000m2

Highlight

glass cloth adhesive tape with liner

160 micron adhesive insulation tape

easy-release adhesive tape for insulation

Product Description

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

Product Overview

Technical Specifications

Parameter	Value
Total Thickness	160 Micron
Adhesion to Steel	≥ 4N/10mm
Tensile Strength	≥ 200N/10mm
Service Temperature	-30°C ~ +150°C
Adhesive Type F-Class	Acrylic Pressure-Sensitive

Key Advantages

Excellent Durability: Flexible, tear-resistant backing ensures reliable performance in demanding conditions.
Strong Adhesion: High-quality acrylic adhesive offers lasting bonds to various surfaces.
Wide Temperature Range & Protection: Operates from -30°C to 150°C with insulation, leak-proof, and heat-resistant properties.

Applications

Reliable Insulation & Fixation: Strong adhesion and high tensile strength make it ideal for wrapping and binding transformer and motor coils, providing secure insulation.
Battery Safety Protection: Explosion-proof and leak-resistant properties ensure effective insulation wrapping for high-energy lithium-ion batteries, enhancing pack safety.
High-Temperature & Surface Protection: Suitable for high-temperature sandblasting masking and shielding applications, protecting workpiece surfaces from damage.
