Glass Cloth Silicone Adhesive Tape Class H 0.180mm Thickness

Products

Heat Resistant Insulation Tape

Aluminum Foil Glass Cloth Tape

Aluminum Foil Fiberglass Cloth

Electrical Insulation Board

info@un-tex.com

0086-13052726305

Contact Now

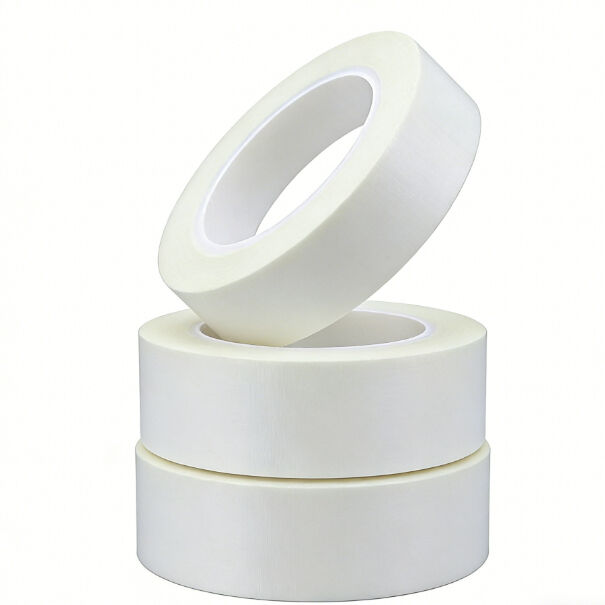

Glass Cloth Silicone Adhesive Tape Class H 0.180mm Thickness

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

Model Number

Backing Material:

E-fiber Glass Cloth

Total Thickness:

180 Micron

Adhesive Type H-Class:

High-Temp Silicone

Thermal Grade:

H Class

Operating Temperature H-Class:

-30°C To +180°C

Breakdown Voltage H-Class:

≥2.5kV

Tensile Strength:

≥210N/10mm

Adhesion Strength:

≥3.8N/10mm

Highlight:

glass cloth adhesive tape

silicone adhesive insulation tape

class H insulation tape

Product Description

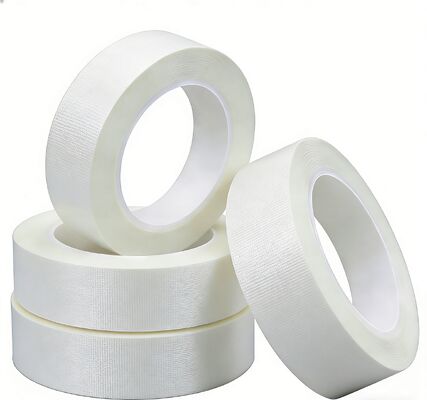

Glass Cloth Silicone Adhesive Tape Class H 0.180mm Thickness

This white flame-retardant electrical insulating tape is manufactured using electronic-grade fiberglass cloth and high-performance silicone adhesive, specifically developed for demanding industrial environments. The product offers excellent electrical insulation, outstanding mechanical strength, and superior high-temperature resistance, making it an ideal solution for insulation and wrapping applications in motors, transformers, and other high-temperature operating conditions.

Technical Specifications

Total Thickness	0.180mm
Thermal Grade	H Class
Adhesive Type	High-Temp Silicone
Service Temperature	-30~180℃

Key Advantages

Excellent Temperature & Flame Resistance: Rated for continuous use at 180°C with outstanding flame-retardant properties, ensuring safe operation in demanding conditions.
Electrical & Mechanical Strength: Breakdown voltage ≥2.5 kV and tensile strength ≥210 N/10mm deliver reliable insulation and long-term structural durability.
Strong & Lasting Adhesion: Silicone adhesive provides firm bonding to steel surfaces, maintains holding strength over time, and offers a shelf life of up to 12 months.

Applications

Motor & Transformer Insulation: Prevents short circuits in Class H leads.
Battery Safety Protection: Explosion-proof wrap for lithium manganese batteries.
High-Temperature Process Protection: Heat shields for sandblasting and sensitive parts.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Minh

Vietnam Jan 28.2026

Helpful (5)

Thank you for helping me correct my mistake at the beginning and guiding me through the purchase smoothly. I really appreciate it.

Lee

Singapore Jan 15.2026

Helpful (3)

I recommend UN.Tex's tape, including their quality and price.

Paul

France Dec 16.2025

Helpful (2)

The most perfect tape.

Tags:

Products

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Certification

RoHS

Model Number

6361

Backing Material:

E-fiber Glass Cloth

Total Thickness:

180 Micron

Adhesive Type H-Class:

High-Temp Silicone

Thermal Grade:

H Class

Operating Temperature H-Class:

-30°C To +180°C

Breakdown Voltage H-Class:

≥2.5kV

Tensile Strength:

≥210N/10mm

Adhesion Strength:

≥3.8N/10mm

Minimum Order Quantity:

500m2

Price:

by quote

Packaging Details:

Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,

Delivery Time:

30days

Payment Terms:

T/T,D/P,L/C

Supply Ability:

10,000m2

Highlight

glass cloth adhesive tape

silicone adhesive insulation tape

class H insulation tape

Product Description

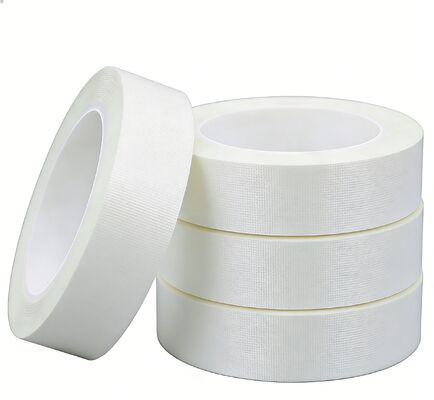

Glass Cloth Silicone Adhesive Tape Class H 0.180mm Thickness

Technical Specifications

Total Thickness	0.180mm
Thermal Grade	H Class
Adhesive Type	High-Temp Silicone
Service Temperature	-30~180℃

Key Advantages

Excellent Temperature & Flame Resistance: Rated for continuous use at 180°C with outstanding flame-retardant properties, ensuring safe operation in demanding conditions.
Electrical & Mechanical Strength: Breakdown voltage ≥2.5 kV and tensile strength ≥210 N/10mm deliver reliable insulation and long-term structural durability.
Strong & Lasting Adhesion: Silicone adhesive provides firm bonding to steel surfaces, maintains holding strength over time, and offers a shelf life of up to 12 months.

Applications

Motor & Transformer Insulation: Prevents short circuits in Class H leads.
Battery Safety Protection: Explosion-proof wrap for lithium manganese batteries.
High-Temperature Process Protection: Heat shields for sandblasting and sensitive parts.
