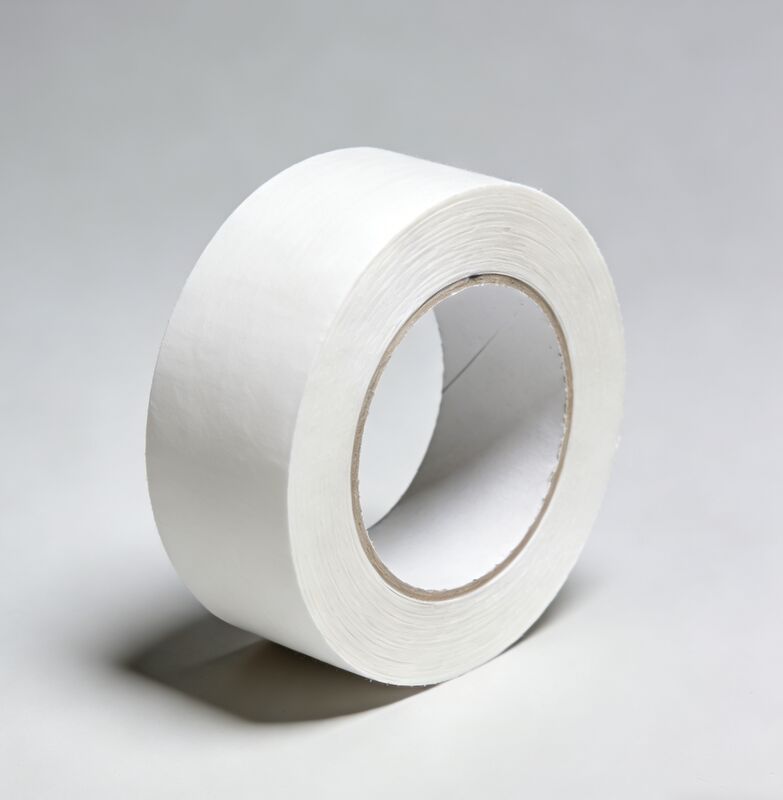

F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive

MOQ: 500 Square meters
Price: quoted as per size and quantity
Standard Packaging: cartons and pallet
Delivery Period: about 30 days
Payment Method: L/C,T/T
Supply Capacity: 10000rolls per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Certification
UL
Model Number
432/452/472
Material:
Aramid Paper
Thickness:
0.105/0.13/0.18mm
Adhesive:
Acrylic Pressure Sensitive Adhesive
Breakdown Voltage:
≥ 1.8kV/2.4kV/2.8kV
Tensile Strength:
≥ 30/45/90 N/10mm
Long-term Temp. Resistance:
F Class/155℃
Width:
10~980mm
Length:
50m
Highlight:

F-class Aramid insulation tape

,

flame-retardant adhesive insulation tape

,

Aramid paper adhesive tape

Product Description
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
Product Description
The F-class aramid paper insulation tape combines high-performance aramid paper with a flame-retardant acrylic adhesive. Engineered for critical electrical insulation systems, it delivers superior heat resistance, dielectric strength, mechanical durability, and flame-retardant properties—ideal for the most demanding applications.
Technical Specifications
Parameters Value
Thickness 0.105/0.13/0.18mm
Breakdown Voltage ≥ 1.8/2.4/2.8kV
Tensile Strength ≥ 30/45/90 N/10mm
Long-term Temperature Resistance F class/155℃
Key Advantages
  • Exceptional Thermal & Electrical Performance: Stable at 155°C (Class F, non-melting) with high dielectric strength to prevent electrical failure.
  • Inherent Safety & Durability: Self-extinguishing (meets fire safety standards), resistant to solvents, oils, and corrosion.
  • Environmental Responsibility: Halogen-free, non-toxic, and emits no harmful substances.
Applications
  • Motor & Transformer Coils: Ensures F-class insulation integrity in coil end wrapping for enhanced operational durability.
  • Battery Systems: Safeguards lithium batteries and sensitive electronic components with chemical-resistant insulation.
  • High-Performance Electronics: Delivers dependable winding insulation for HVT, HID, and other specialty transformers.
F-class Aramid Paper Insulation Tape product illustration showing tape structure and application examples
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

S
Suharto
Indonesia Feb 19.2026
Helpful (3)
UN.Tex has such a great selection of fabrics, it really saved me a lot of hassle with my purchasing. Thanks!
M
Minh
Vietnam Jan 28.2026
Helpful (5)
Thank you for helping me correct my mistake at the beginning and guiding me through the purchase smoothly. I really appreciate it.
L
Lee
Singapore Jan 15.2026
Helpful (3)
I recommend UN.Tex's tape, including their quality and price.
