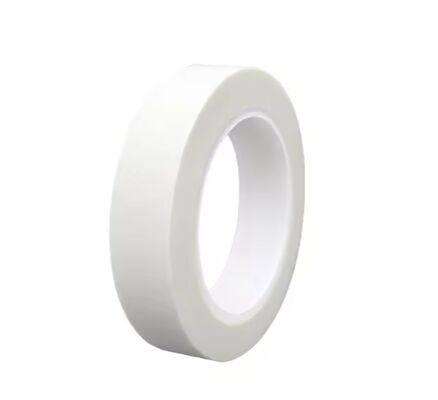

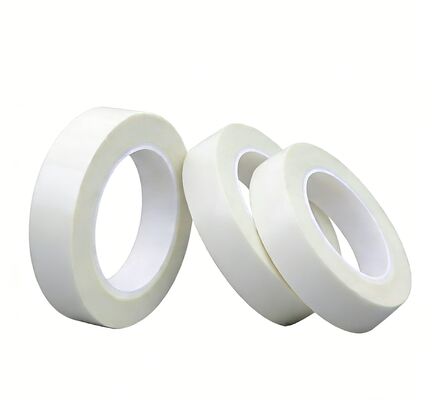

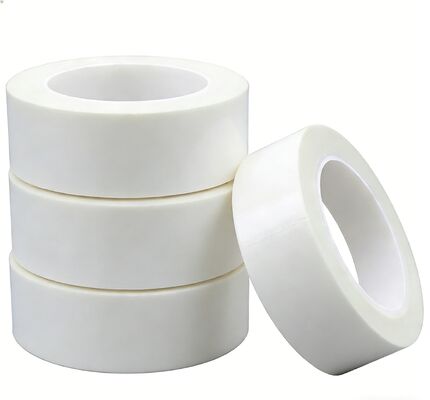

White Fiberglass Cloth Tape With Silicone Adhesive For Industrial Applications

MOQ: 500m2
Price: by quote
Standard Packaging: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period: 30days
Payment Method: T/T,D/P,L/C
Supply Capacity: 10,000m2
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
6361
Backing Material:
E-fiber Glass Cloth
Total Thickness:
180 Micron
Adhesive Type H-Class:
High-Temp Silicone
Thermal Grade:
H Class
Operating Temperature H-Class:
-30°C To +180°C
Breakdown Voltage H-Class:
≥2.5kV
Tensile Strength:
≥210N/10mm
Adhesion Strength:
≥3.8N/10mm
Highlight:

white fiberglass cloth tape

,

silicone adhesive insulation tape

,

industrial fiberglass adhesive tape

Product Description
White Fiberglass Cloth Tape With Silicone Adhesive
This flame-retardant white electrical insulation tape, manufactured with E-fiberglass cloth and high-performance silicone adhesive, is engineered for demanding industrial environments. It delivers superior electrical insulation, exceptional mechanical strength, and outstanding high-temperature resistance, making it the optimal solution for insulation and wrapping applications in motors, transformers, and other high-temperature operations.
Technical Specifications
Parameter Value
Total Thickness 0.180mm
Thermal Grade H Class
Adhesive Type High-Temp Silicone
Service Temperature -30~180℃
Key Advantages
  • High-Temperature and Flame-Retardant Performance
    Rated for continuous operation at 180°C with excellent flame-retardant properties for enhanced safety in demanding applications.
  • Electrical and Mechanical Strength
    Breakdown voltage ≥2.5 kV and tensile strength ≥210 N/10mm ensure reliable insulation performance and long-term durability.
  • Reliable Adhesion and Stability
    Strong adhesion to steel surfaces with silicone adhesive that maintains bond strength and offers a shelf life of up to 12 months.
Industrial Applications
  • Motor & Transformer Manufacturing
    Ideal for insulating lead wires in H-class motors and transformers, effectively preventing short circuits and electrical failures.
  • Battery Insulation & Safety
    Used for wrapping lithium manganese batteries, providing explosion-proof protection and preventing electrolyte leakage.
  • High-Temperature Operations & Protection
    Protects sensitive components during sandblasting and other industrial processes requiring thermal insulation, preventing heat damage and ensuring operational integrity.
White Fiberglass Cloth Tape With Silicone Adhesive For Industrial Applications 0
