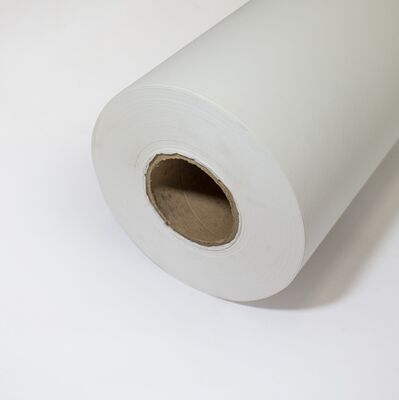

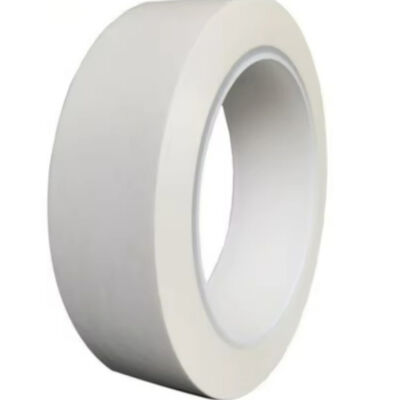

High-performance Aramid Paper Adhesive Tape H Class For Insulation

High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation High-performance Aramid Paper Adhesive Tape H Class For Insulation High-performance Aramid Paper Adhesive Tape H Class For Insulation High-performance Aramid Paper Adhesive Tape H Class For Insulation

Large Image :  High-performance Aramid Paper Adhesive Tape H Class For Insulation

Product Details:
Place of Origin: China
Certification: UL
Model Number: 4332/4352
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: basing on size and quantity
Packaging Details: cartons and pallet
Delivery Time: about 30 days
Payment Terms: T/T,D/P,L/C
Supply Ability: 10000rolls
Contact Now

High-performance Aramid Paper Adhesive Tape H Class For Insulation

Description
Material: Aramid Paper Thickness: 0.10/0.13mm
Adhesive: Flame Retardant Silicone Pressure Sensitive Adhesive Breakdown Voltage: ≥ 2/2.5kV
Tensile Strength: ≥ 30/40 N/10mm Long-term Temperature Resistance: H Class/180℃
Width: 10~980mm Length: 50m
Highlight:

H Class Aramid Paper Adhesive Tape

,

Flame Retardant Silicone Adhesive Insulation Tape

,

High Dielectric Strength Electrical Insulation Tape

High-performance Aramid Paper Adhesive Tape H Class For Insulation
Product Description
The H-class Insulation Aramid Paper Adhesive Tape is engineered with high-performance aramid paper and flame-retardant silicone pressure-sensitive adhesive. Designed as a core material for premium electrical insulation systems, it delivers superior dielectric strength and is optimized for high-voltage environments and applications requiring high reliability, ensuring safe and stable operation of electrical equipment.
Technical Specifications
Parameter Value
Thickness 0.10/0.13mm
Breakdown Voltage ≥ 2.0/2.5kV
Tensile Strength ≥ 30/40 N/10mm
Long-term Temperature Resistance H class/180℃
Key Advantages
  • High Dielectric Strength: Ensures reliable insulation with high breakdown voltage for maximum safety.
  • Excellent Corona Resistance: Provides superior resistance to partial discharge, ensuring durability in demanding environments.
  • H-Class Thermal Capability: Withstands continuous 180°C operation with outstanding thermal stability.
Applications
  • Motor & Transformer Coils: Coil end wrapping with high thermal and mechanical strength.
  • Batteries & Electronics: Chemical-resistant insulation for lithium batteries and mobile accessories.
  • Specialty Transformers: High-voltage winding insulation for HVT, HID, and electronic transformers.

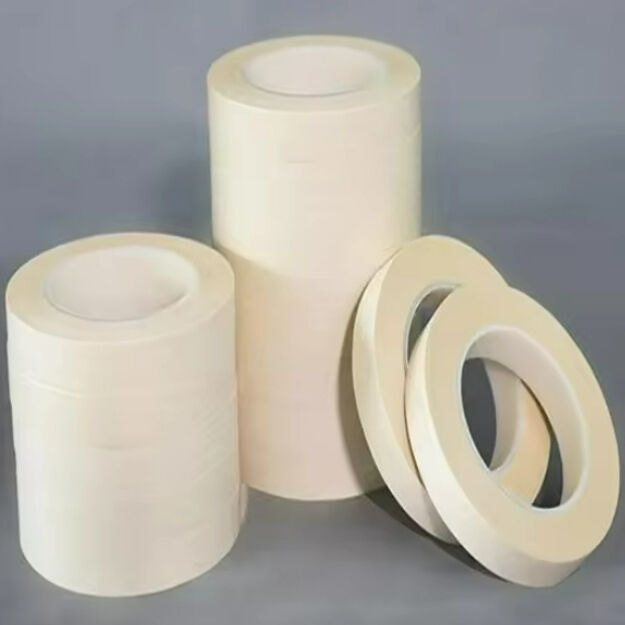

High-performance Aramid Paper Adhesive Tape H Class For Insulation 0

Tag:

Acrylic Adhesive Insulation Tape,

Aramid paper adhesive tape,

Acrylic paper adhesive tape
