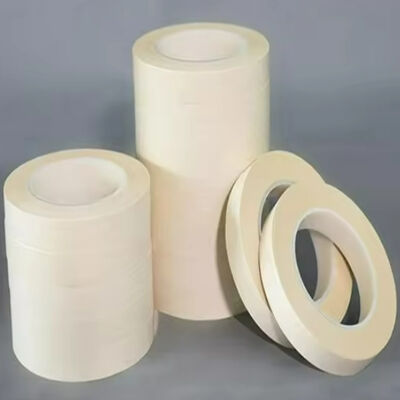

High-performance Aramid Paper Adhesive Tape H Class For Insulation

MOQ: 500m2
Price: basing on size and quantity
Standard Packaging: cartons and pallet
Delivery Period: about 30 days
Payment Method: T/T,D/P,L/C
Supply Capacity: 10000rolls
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Certification
UL
Model Number
4332/4352
Material:
Aramid Paper
Thickness:
0.10/0.13mm
Adhesive:
Flame Retardant Silicone Pressure Sensitive Adhesive
Breakdown Voltage:
≥ 2/2.5kV
Tensile Strength:
≥ 30/40 N/10mm
Long-term Temperature Resistance:
H Class/180℃
Width:
10~980mm
Length:
50m
Highlight:

H Class Aramid Paper Adhesive Tape

,

Flame Retardant Silicone Adhesive Insulation Tape

,

High Dielectric Strength Electrical Insulation Tape

Product Description
High-performance Aramid Paper Adhesive Tape H Class For Insulation
Product Description
The H-class Insulation Aramid Paper Adhesive Tape is engineered with high-performance aramid paper and flame-retardant silicone pressure-sensitive adhesive. Designed as a core material for premium electrical insulation systems, it delivers superior dielectric strength and is optimized for high-voltage environments and applications requiring high reliability, ensuring safe and stable operation of electrical equipment.
Technical Specifications
Parameter Value
Thickness 0.10/0.13mm
Breakdown Voltage ≥ 2.0/2.5kV
Tensile Strength ≥ 30/40 N/10mm
Long-term Temperature Resistance H class/180℃
Key Advantages
  • High Dielectric Strength: Ensures reliable insulation with high breakdown voltage for maximum safety.
  • Excellent Corona Resistance: Provides superior resistance to partial discharge, ensuring durability in demanding environments.
  • H-Class Thermal Capability: Withstands continuous 180°C operation with outstanding thermal stability.
Applications
  • Motor & Transformer Coils: Coil end wrapping with high thermal and mechanical strength.
  • Batteries & Electronics: Chemical-resistant insulation for lithium batteries and mobile accessories.
  • Specialty Transformers: High-voltage winding insulation for HVT, HID, and electronic transformers.
High-performance Aramid Paper Adhesive Tape H Class For Insulation 0
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

S
Suharto
Indonesia Feb 19.2026
Helpful (3)
UN.Tex has such a great selection of fabrics, it really saved me a lot of hassle with my purchasing. Thanks!
M
Minh
Vietnam Jan 28.2026
Helpful (5)
Thank you for helping me correct my mistake at the beginning and guiding me through the purchase smoothly. I really appreciate it.
L
Lee
Singapore Jan 15.2026
Helpful (3)
I recommend UN.Tex's tape, including their quality and price.
