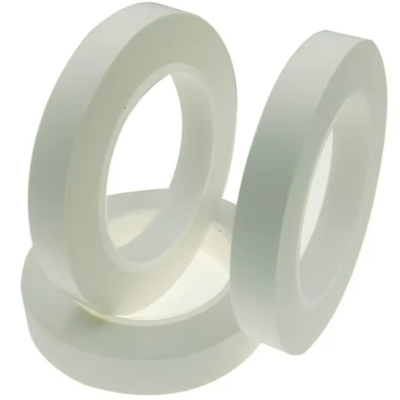

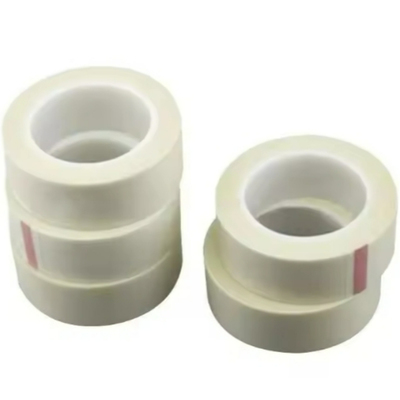

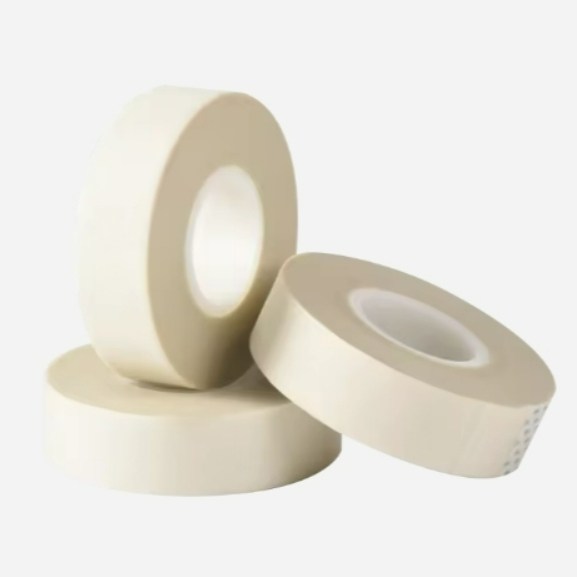

Flame-Retardant White Electrical Insulation Tape H-Class With Silicone Adhesive

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period:	30days
Payment Method:	T/T,D/P,L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

Model Number

Color:

White

Backing Material:

E-fiber Glass Cloth

Total Thickness:

180 Micron

Glass Cloth Thickness:

120 Micron

Operating Temperature H-Class:

-30°C To +180°C

Adhesive Type H-Class:

High-Temp Silicone

Breakdown Voltage H-Class:

≥2.5kV

Elongation:

Tensile Strength:

≥210N/10mm

Adhesion Strength:

≥3.8N/10mm

Thermal Grade:

H Class

Usage:

Wrapping Transformer Coil Leads

Highlight:

Flame-Retardant electrical insulation tape

H-Class silicone adhesive tape

White electrical insulation tape

Product Description

Product Description:

The Flame-Retardant White Electrical Insulation Tape, constructed with E-fiberglass cloth as the base and high-performance silicone adhesive, is engineered for demanding industrial environments. It integrates exceptional electrical insulation, high mechanical strength, and outstanding high-temperature resistance, making it an ideal choice for insulation and wrapping in motors, transformers, and various high-temperature applications—ensuring reliable performance under rigorous conditions.

Advantages:

Exceptional High-Temperature and Flame-Retardant Performance
1. Rated H-class (180°C), the tape ensures stable long-term operation in high-temperature environments up to 180°C.
2. Offers excellent flame-retardant properties, effectively preventing flame spread and enhancing equipment and operational safety.
Superior Electrical and Mechanical Strength
1. High dielectric strength, with a breakdown voltage (BDV) ≥2.5 kV, effectively preventing electrical puncture and delivering reliable insulation.
2. Tensile strength ≥210 N/10mm, providing robust resistance to tearing, abrasion, and outstanding mechanical durability.
Reliable Adhesion and Long-Term Stability
1. Adhesion strength to steel substrates ≥3.8 N/10mm, ensuring firm bonding without easy lifting or peeling.
2. The silicone adhesive maintains strong adhesion even under high temperatures, with a shelf life of up to 12 months under recommended storage conditions.

Technical Parameters:

Parameters	Value
Base cloth Thickness	0.120±0.01mm
Total Thickness	0.180±0.01mm
BDV	≥2.5KV
Tensile strength	≥210N/10mm
Elongation	≥3%
Adhesion strength to steel plate	≥3.8N/10mm
Thermal grade	H class
Adhesive Type H-Class	High-Temp Silicone
Service Temp.	-30~180℃

Applications:

High-End Motor & Transformer Manufacturing: Ideal for insulating lead wires in H-class motors and transformers, meeting stringent high-temperature insulation requirements and preventing short circuits.
Battery Insulation & Safety Protection: Widely used for wrapping lithium manganese batteries, providing critical safety functions such as explosion-proofing and leakage prevention.
High-Temperature Operations & Industrial Protection: Suitable for component protection during high-temperature sandblasting and for industrial scenarios requiring thermal insulation or shielding, safeguarding equipment from heat damage.
