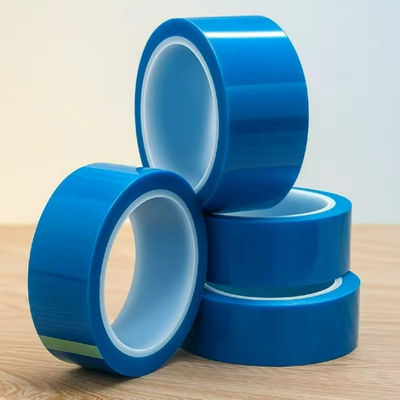

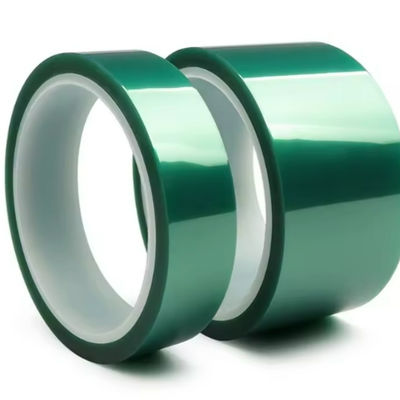

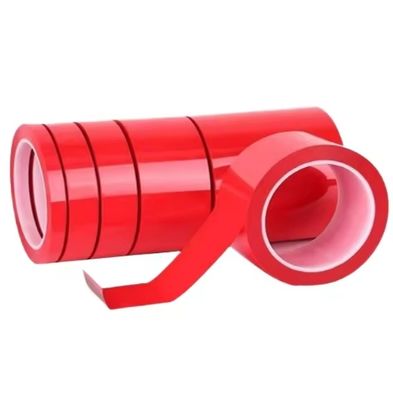

PET Splicing Tape with 0.09mm Thickness 10mm~500mm Width and 50m Length for High Temperature Electrical Insulation

MOQ:	500m2
Price:	Usd1~5/roll
Standard Packaging:	Export carton case
Delivery Period:	30 working days
Payment Method:	L/C,T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

Model Number

1334B

Base Film Material:

PET Film

Adhesive Type:

Silicone Adhesive

Thickness:

0.09mm

Width:

10mm~500mm

Length:

Color:

Blue, Green ,red

Highlight:

0.09mm Thickness PET Splicing Tape

10mm~500mm Width Electrical Insulation Tape

50m Length High Temperature Tape

Product Description

PET High Temperature Splicing Tape Electrical Insulation Tape With Silicone Adhesive

Description

The PET High temperature splicing tape is composed of an electrical-grade, low-shrinkage polyester film coated with an imported silicone pressure-sensitive adhesive. It is manufactured through a specialized drying and slitting process. This tape exhibits excellent adhesion, outstanding heat resistance, and strong chemical corrosion resistance, making it suitable for bonding hard-to-adhere materials.

Performance Parameters

Parameter	Typical Specification / Description
Backing Material	Polyester Film (PET): Provides mechanical strength and stability.
Adhesive	Silicone Pressure-Sensitive Adhesive: The key to high-temperature resistance.
Thickness	0.09mm
Width	10mm~500mm
Length	50m
Color	Blue, green, red

Advantages

Exceptional High-Temperature Resistance: It can withstand the high temperatures of processes like wave soldering and reflow soldering without melting or leaving residue, effectively protecting workpieces.
Excellent Electrical Insulation: Both the PET backing and silicone adhesive are good insulators, making the tape ideal for PCB protection and insulation in the electronics industry.
Superior Chemical Stability: It resists erosion from various chemical solvents, acids, and alkalis, protecting adhered surfaces from contamination.
High Strength and Puncture Resistance: The polyester film backing gives the tape high mechanical strength, preventing it from tearing or puncturing easily in harsh processing environments.

Applications

Bonding Difficult Materials: Seamlessly joins hard-to-stick surfaces like silicone release papers and films during manufacturing processes.
High-Temp Spray Masking: Reliably masks and protects sensitive areas, such as plastic electrical housings, during high-temperature spray painting.
Corrosive & High-Temp Environments: Performs consistently in various applications demanding robust chemical resistance and thermal stability.
