High-Temperature Aramid Paper Adhesive Tape with 0.105mm Thickness and 155℃ Temperature Range for Electrical Insulation

MOQ: 500 SQ.M
Price: basing on size and quantity
Standard Packaging: cartons
Delivery Period: about 30 days
Payment Method: TT,T/T
Supply Capacity: 20000rolls
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
Aramid paper adhesive tape
Certification
UL
Model Number
432
Elongation:
4%
Width:
10~980mm
Length:
50m Or As Per Order
Adhesive Strength To Steel:
12N/25mm
Color:
White
Product Name:
High-Temperature Aramid Paper Adhesive Tape
Total Thickness:
0.105mm
Application:
F-class Motor And Transformer Coil End Wrapping
Material:
Aramid Paper
Highlight:

0.105mm Thickness Aramid Paper Adhesive Tape

,

12N/25mm Adhesive Strength Electrical Insulation Tape

,

155℃ Temperature Range Nomex Adhesive Tape

Product Description
Aramid Paper Adhesive Tape With Acrylic Pressure Sensitive Adhesive White Electrical Insulation Tape
The Aramid Paper Adhesive Tape is a high-performance industrial tape featuring a unique substrate made from heat-resistant meta-aramid fibers, combined with a durable acrylic pressure-sensitive adhesive. This combination results in a lightweight, flexible tape that delivers exceptional electrical insulation, flame retardancy, and mechanical strength, suitable for use in extreme temperature and demanding industrial environments.
Technical Parameters
Parameter Value
Elongation 4%
Adhesive Flame Retardant Acrylic Pressure Sensitive Adhesive
Length 50m Or As Per Order
Width 10~980mm
Adhesive Strength to steel 12N/25mm
Tensile Strength ≥30N/10mm
Color White
Application F-class Motor And Transformer Coil End Wrapping
Material Aramid Paper (similar To Nomex Paper)
Temperature Range -55~155℃
Key Advantages
  • Exceptional Heat Resistance & Flame Retardancy: Offers exceptional thermal stability and flame retardancy, withstands temperatures up to 155℃ (311℉). Ideal for electrical insulation, motor winding, and transformer applications.
  • Excellent Electrical Insulation: Offers high dielectric strength, providing reliable insulation in high-voltage applications such as motors and transformers.
  • High Mechanical Strength & Durability: The aramid fibers impart high tensile and tear resistance, making the tape abrasion and puncture-resistant for reliable mechanical protection.
  • Good Flexibility: The tape is soft and pliable, allowing for easy wrapping, die-cutting, and conforming to complex shapes.
  • Resistance to Chemicals and Radiation: Exhibits good resistance to many chemicals, oils, and coolants, as well as some level of radiation, suiting it for harsh environments.
Applications
  • Electrical Motors & Insulation: Used for layer, slot, phase, and end-wedge insulation in electric motors, transformers, and generators.
  • Aerospace & Rail Transportation: Used for wire harnessing, insulation protection, and fireproofing in aircraft and high-speed trains.
  • Electronics Industry: Used for insulating and fixing flexible printed circuits (FPCs) and lithium-ion batteries, and as a mask during high-temperature soldering.
  • Industrial Protection & Composites: Serves as a protective wrap for high-temperature pipes and hoses. Can also be used as a release or separation layer in composite manufacturing.
The Aramid Paper Adhesive Tape, Model 432, delivers reliable performance and efficient insulation for your applications. Procurement is straightforward, with a standard delivery time of approximately 30 days and simple payment via Telegraphic Transfer (TT).

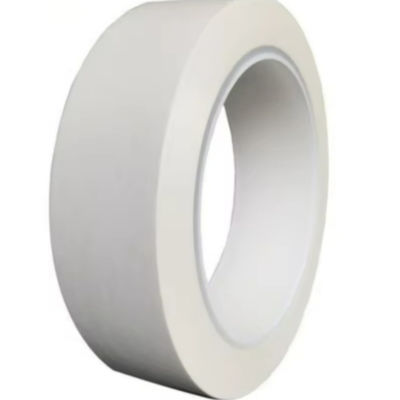

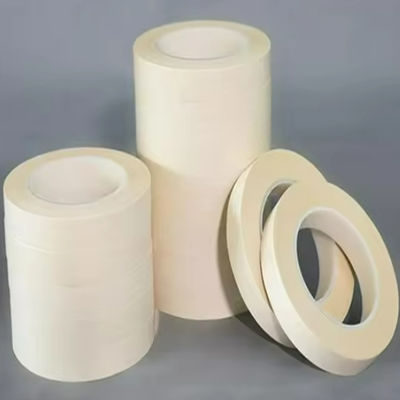

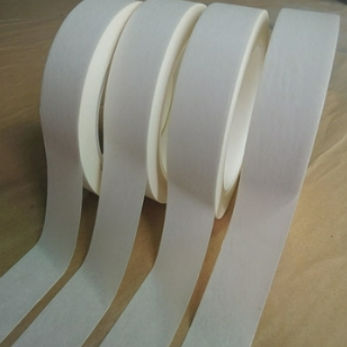

Aramid Paper Adhesive Tape product image Aramid Paper Adhesive Tape in application
