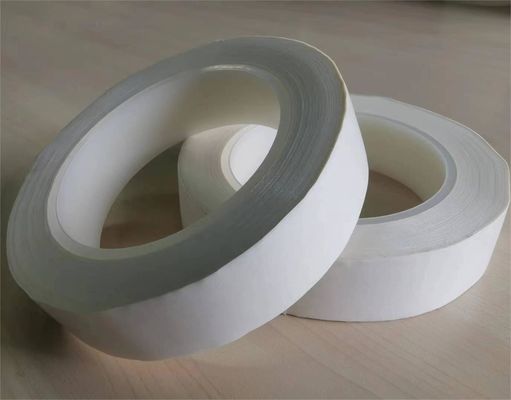

7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications

7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications
7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications

Large Image :  7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications

Product Details:
Place of Origin: China
Model Number: 4332
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Square meters
Price: quoted as per size and quantity
Packaging Details: cartons and pallet
Delivery Time: about 35 days
Payment Terms: T/T
Supply Ability: 10000rolls per month

7.5N/cm Adhesive Strength White Aramid Paper Insulation Tape 0.10mm For Electrical Applications

Description
Tensile Strength: 30N/cm Adhesive Strength: 7.5N/cm
Voltage Resistance: 2000V Elongation: 4%
Thickness: 0.10mm Length: 50m
Color: White Temperature Range: -55℃~180℃
Width: 10~980mm
Highlight:

Electrical Aramid Paper Insulation Tape

,

White Aramid Paper Insulation Tape

,

7.5N/cm Aramid Paper Insulation Tape

Product Description:

One of the standout features of this Adhesive Insulation Tape is its ability to stretch up to 4%. This elongation property allows the tape to conform to irregular surfaces, ensuring complete coverage and protection. Additionally, the tape is made with a 180C silicone adhesive, providing excellent heat resistance and durability.

Whether you're working on a DIY project or a professional electrical job, this Adhesive Insulation Tape is a reliable and versatile choice. Its high-quality construction and superior insulation properties make it ideal for a wide range of applications.

Don't settle for anything less than the best. Choose the Aramid Paper Adhesive Insulation Tape for your next project and experience the peace of mind that comes with knowing you're using a top-quality product.



Features:

  • Product Name: Aramid Paper Adhesive Insulation Tape
  • Elongation: 4%
  • Material: Aramid Paper
  • Adhesive Strength: 7.5N/cm
  • Color: White
  • High Temperature Resistance: up to 180℃, short term 220℃
  • Provides excellent insulation and protection
  • Perfect for electrical and industrial applications
  • Can be easily applied and removed
  • Size: 10~980mm x 50 meters


Technical Parameters:

Voltage Resistance 2000V
Tensile Strength 30N/cm
Material Aramid Paper
Elongation 4%
Width 10~980mm
Adhesive Strength 7.5N/cm
Color White
Temperature Range -55℃~180℃
Product Name Aramid Paper Adhesive Insulation Tape
Breakdown voltage 2KV


Applications:

The white color of this adhesive insulation tape makes it easy to identify when used on different surfaces. It is designed to withstand extreme temperatures ranging from -55℃ to 180℃, making it suitable for use in harsh environments.

The adhesive insulation tape is widely used in electrical applications such as insulation of wires, cables, and other electrical components. It is perfect for use in high-temperature environments where other tapes may fail. This product is also commonly used in the automotive industry for wire harnessing and other applications that require high-temperature resistance.

The 180 silicone adhesive tape is perfect for use in extreme temperature conditions. It can withstand temperatures of up to 180 without losing its adhesive properties. This makes it ideal for use in industrial applications where high temperatures are common.

The adhesive insulation tape electrical is also perfect for use in the construction industry. It is commonly used for sealing HVAC systems, air ducts, and other areas where insulation is required. It can also be used for general-purpose bonding and fixing applications.

In conclusion, the adhesive insulation tape electrical is a versatile product that can be used in various industries. Its high adhesive strength, temperature resistance, and flexibility make it ideal for electrical insulation and other applications. Whether you are in the automotive, construction, or industrial sector, this product is sure to meet your needs.
