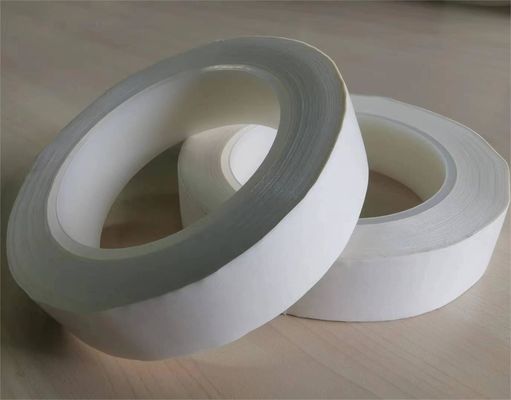

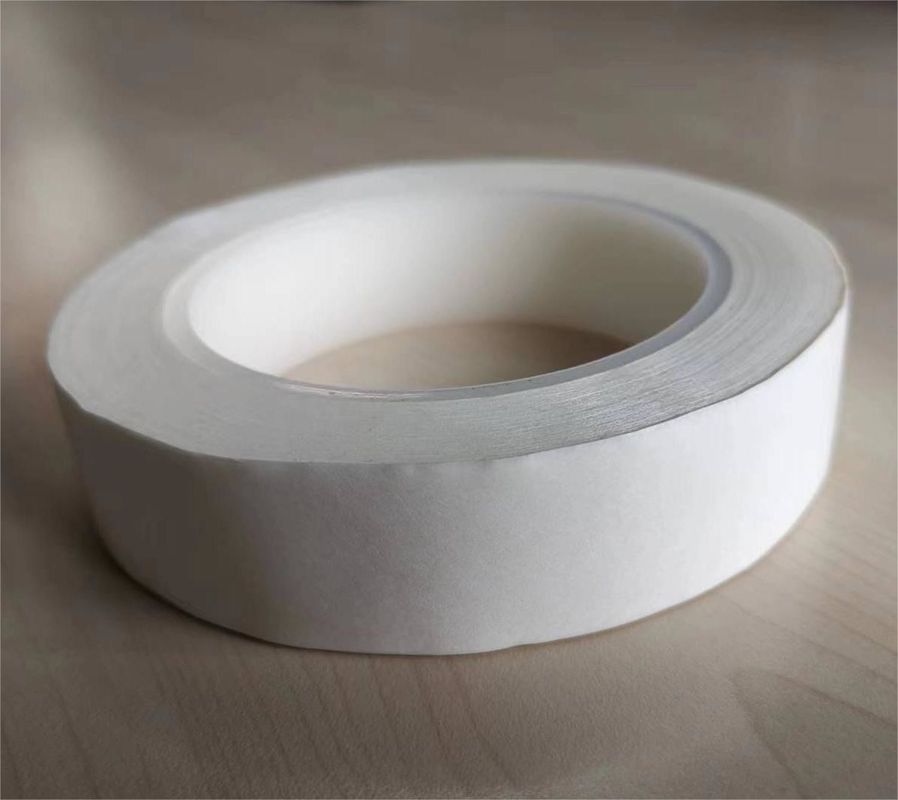

Name: High-Performance F-Class Aramid Paper Electrical Insulation Tape
Brand: UN.Tex (Dalian) Co.,Ltd
SKU: 432/452/472
Price: 99.50 USD
Availability: InStock

MOQ:	500 SQ.M
Price:	basing on size and quantity
Standard Packaging:	cartons
Delivery Period:	about 30 days
Payment Method:	T/T
Supply Capacity:	20000rolls

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

China

Model Number

432/452/472

Material:

Aramid Paper

Adhesive:

Acrylic Pressure-sensitive Adhesive

Thickness:

0.105/0.13/0.18mm

Tensile Strength:

≥ 30/45/90 N/10mm

Adhesion Strength:

≥ 12.0N/25mm

Breakdown Voltage:

≥ 1.8/2.4/2.8kV

Long-term Temperature Resistance:

F Class/155℃

Usage:

Insulation Wrapping

Highlight:

electrical insulation banding tape

NOMEX tape F grade

NOMEX tape electrical

Product Description

High-Performance F-Class Aramid Paper Electrical Insulation Tape

Product Overview

The F-Class Insulation Aramid Paper Tape is engineered by combining aramid paper with a flame-retardant acrylic pressure-sensitive adhesive, delivering superior electrical insulation performance.

Material & Class: Aramid paper substrate, rated for F-class (155°C) heat resistance
Key Properties: High dielectric strength and excellent tear resistance
Safety Feature: Compliant with relevant flame-retardancy standards

Technical Specifications

Parameters	Value
Thickness	0.105/0.13/0.18mm
Breakdown Voltage	≥ 1.8/2.4/2.8kV
Tensile Strength	≥ 30/45/90 N/10mm
Long-term Temperature Resistance	F class/155℃

Key Advantages

Performance & Safety: Delivers reliable F-class (155°C) heat resistance, high dielectric strength, and self-extinguishing flame retardancy that meets safety standards
Material Durability: Resists tearing and withstands exposure to oils, solvents, and corrosive substances
Environmental & Health: Halogen-free, non-toxic, and emits no harmful substances

Applications

Motor & Transformer Insulation: Delivers reliable F-class protection for wrapping and securing coils in motors and transformers
Battery & Component Shielding: Provides chemical-resistant insulation for lithium batteries and sensitive electronic assemblies
High-Performance Transformer Wrapping: Specifically suited for demanding applications including HVT, HID, and other specialty electronic transformers

High-Performance F-Class Aramid Paper Electrical Insulation Tape 0

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Suharto

Indonesia Feb 19.2026

Helpful (3)

UN.Tex has such a great selection of fabrics, it really saved me a lot of hassle with my purchasing. Thanks!

Lee

Singapore Jan 15.2026

Helpful (3)

I recommend UN.Tex's tape, including their quality and price.

Paul

France Dec 16.2025

Helpful (2)

The most perfect tape.

Tags:

Products

MOQ:	500 SQ.M
Price:	basing on size and quantity
Standard Packaging:	cartons
Delivery Period:	about 30 days
Payment Method:	T/T
Supply Capacity:	20000rolls

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

432/452/472

Material:

Aramid Paper

Adhesive:

Acrylic Pressure-sensitive Adhesive

Thickness:

0.105/0.13/0.18mm

Tensile Strength:

≥ 30/45/90 N/10mm

Adhesion Strength:

≥ 12.0N/25mm

Breakdown Voltage:

≥ 1.8/2.4/2.8kV

Long-term Temperature Resistance:

F Class/155℃

Usage:

Insulation Wrapping

Minimum Order Quantity:

500 SQ.M

Price:

basing on size and quantity

Packaging Details:

cartons

Delivery Time:

about 30 days

Payment Terms:

T/T

Supply Ability:

20000rolls

Highlight

electrical insulation banding tape

NOMEX tape F grade

NOMEX tape electrical

Product Description

High-Performance F-Class Aramid Paper Electrical Insulation Tape

Product Overview

The F-Class Insulation Aramid Paper Tape is engineered by combining aramid paper with a flame-retardant acrylic pressure-sensitive adhesive, delivering superior electrical insulation performance.

Material & Class: Aramid paper substrate, rated for F-class (155°C) heat resistance
Key Properties: High dielectric strength and excellent tear resistance
Safety Feature: Compliant with relevant flame-retardancy standards

Technical Specifications

Parameters	Value
Thickness	0.105/0.13/0.18mm
Breakdown Voltage	≥ 1.8/2.4/2.8kV
Tensile Strength	≥ 30/45/90 N/10mm
Long-term Temperature Resistance	F class/155℃

Key Advantages

Performance & Safety: Delivers reliable F-class (155°C) heat resistance, high dielectric strength, and self-extinguishing flame retardancy that meets safety standards
Material Durability: Resists tearing and withstands exposure to oils, solvents, and corrosive substances
Environmental & Health: Halogen-free, non-toxic, and emits no harmful substances

Applications

Motor & Transformer Insulation: Delivers reliable F-class protection for wrapping and securing coils in motors and transformers
Battery & Component Shielding: Provides chemical-resistant insulation for lithium batteries and sensitive electronic assemblies
High-Performance Transformer Wrapping: Specifically suited for demanding applications including HVT, HID, and other specialty electronic transformers

High-Performance F-Class Aramid Paper Electrical Insulation Tape 0
