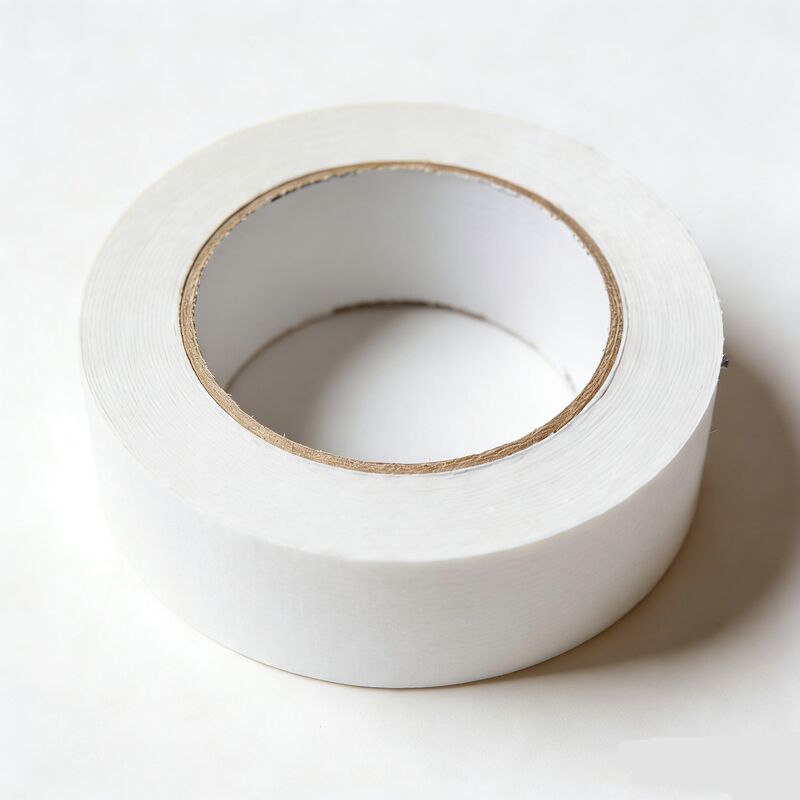

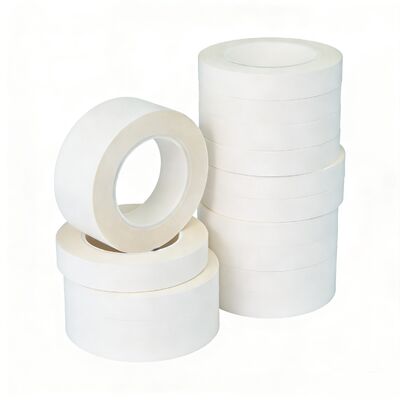

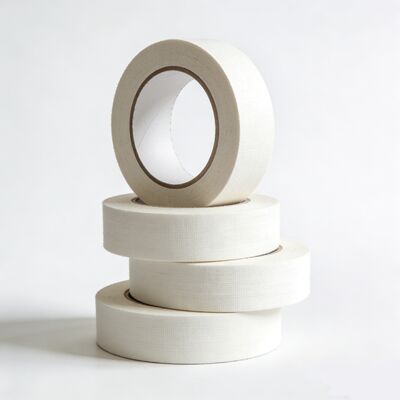

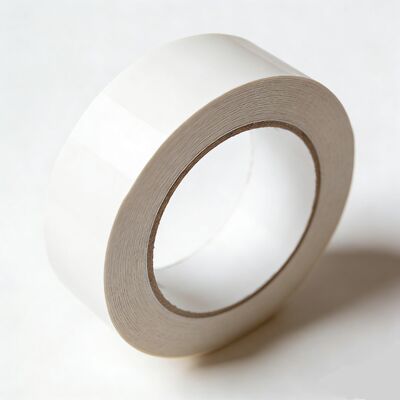

High-Performance F-Class Aramid Paper Electrical Insulation Tape

High-Performance F-Class Aramid Paper Electrical Insulation Tape
High-Performance F-Class Aramid Paper Electrical Insulation Tape
High-Performance F-Class Aramid Paper Electrical Insulation Tape High-Performance F-Class Aramid Paper Electrical Insulation Tape High-Performance F-Class Aramid Paper Electrical Insulation Tape High-Performance F-Class Aramid Paper Electrical Insulation Tape High-Performance F-Class Aramid Paper Electrical Insulation Tape

Large Image :  High-Performance F-Class Aramid Paper Electrical Insulation Tape

Product Details:
Place of Origin: China
Model Number: 432/452/472
Payment & Shipping Terms:
Minimum Order Quantity: 500 SQ.M
Price: basing on size and quantity
Packaging Details: cartons
Delivery Time: about 30 days
Payment Terms: T/T
Supply Ability: 20000rolls
Contact Now

High-Performance F-Class Aramid Paper Electrical Insulation Tape

Description
Material: Aramid Paper Adhesive: Acrylic Pressure-sensitive Adhesive
Thickness: 0.105/0.13/0.18mm Tensile Strength: ≥ 30/45/90 N/10mm
Adhesion Strength: ≥ 12.0N/25mm Breakdown Voltage: ≥ 1.8/2.4/2.8kV
Long-term Temperature Resistance: F Class/155℃ Usage: Insulation Wrapping
Highlight:

electrical insulation banding tape

,

NOMEX tape F grade

,

NOMEX tape electrical

High-Performance F-Class Aramid Paper Electrical Insulation Tape
Product Overview
The F-Class Insulation Aramid Paper Tape is engineered by combining aramid paper with a flame-retardant acrylic pressure-sensitive adhesive, delivering superior electrical insulation performance.
  • Material & Class: Aramid paper substrate, rated for F-class (155°C) heat resistance
  • Key Properties: High dielectric strength and excellent tear resistance
  • Safety Feature: Compliant with relevant flame-retardancy standards
Technical Specifications
Parameters Value
Thickness 0.105/0.13/0.18mm
Breakdown Voltage ≥ 1.8/2.4/2.8kV
Tensile Strength ≥ 30/45/90 N/10mm
Long-term Temperature Resistance F class/155℃
Key Advantages
  • Performance & Safety: Delivers reliable F-class (155°C) heat resistance, high dielectric strength, and self-extinguishing flame retardancy that meets safety standards
  • Material Durability: Resists tearing and withstands exposure to oils, solvents, and corrosive substances
  • Environmental & Health: Halogen-free, non-toxic, and emits no harmful substances
Applications
  • Motor & Transformer Insulation: Delivers reliable F-class protection for wrapping and securing coils in motors and transformers
  • Battery & Component Shielding: Provides chemical-resistant insulation for lithium batteries and sensitive electronic assemblies
  • High-Performance Transformer Wrapping: Specifically suited for demanding applications including HVT, HID, and other specialty electronic transformers

High-Performance F-Class Aramid Paper Electrical Insulation Tape 0  High-Performance F-Class Aramid Paper Electrical Insulation Tape 1

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
Abdullah
Malaysia Mar 19.2026
Helpful (8)
I highly recommend UN.Tex's tape. I'm really happy with both the price and quality, and their supply is super reliable. I've bought from them multiple times without hesitation. Tq
L
Luca
Italy Mar 5.2026
Helpful (1)
They offer a wide variety of tapes, so you can get everything you need in one place.
L
Lee
Singapore Jan 15.2026
Helpful (3)
I recommend UN.Tex's tape, including their quality and price.
