Product Details:
|
| Al Foil Thickness: | 30 Micron | Working Temp.: | -35~120℃ |
|---|---|---|---|
| Adhesive Type: | Flame Retardant Cold Weather Solvent Acrylic | Class O: | Passed |

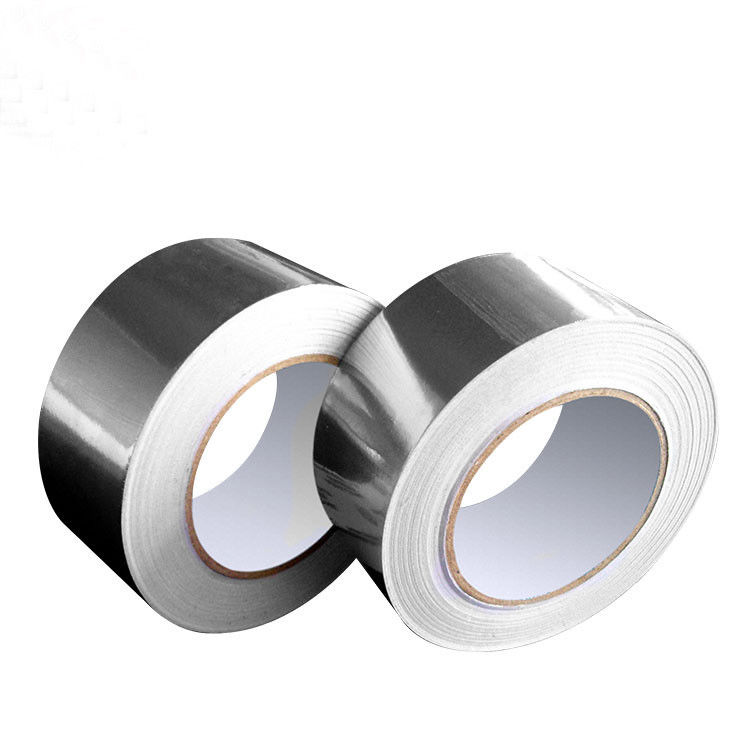

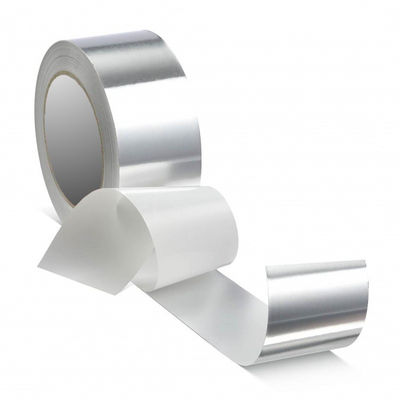

F/R grade cold weather Aluminum Foil Tape
PRODUCT DESCRIPTION
A nominal 30 micron (1.2 mil) high tensile strength aluminum foil backing, combined with a flame retardant cold weather solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• Cold weather adhesive with moderate adhesion offers good sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 30 Micron | 1.2 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 70 Micron | 2.8 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 15 N/25mm | 54 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 5 cm | 2 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 45 N/25mm | 10.2 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | %. | 3.0 | PSTC-131 / ASTM D 3759 |
| Service Temperature | -35 ~ +120 °C | -31 ~ +248 °F | ------------ |
| Applying Temperature | -20 ~ 40 °C | -4 ~ +105 °F | ------------ |
| FSI 25/ SDI 50 Index | Passed | Passed | UL723 & ASTM E84 |
| Class O | Passed | Passed | BS476 Pt. 6 & 7 |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking application.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Log Roll: 1200mm x 45 / 50m Jumbo Roll: 1200mm x 1000m / 1200m / 1350m
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
PRODUCT USE: The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
