Product Details:
|
| Base Material: | Polyaramid Fiber Paper | Adhesive Type: | Acrylic Pressure Sensitive Adhesive |
|---|---|---|---|
| Total Thickness: | 0.18mm | Width: | 10mm~980mm |
| Heat Grade: | F Class | ||
| Highlight: | Flame Retardant Acrylic Adhesive Aramid Tape,Heat Resistance Aramid Adhesive Tape,Aramid Paper Acrylic Adhesive Tape |
||

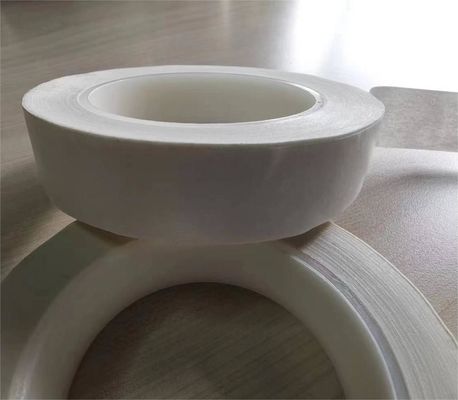

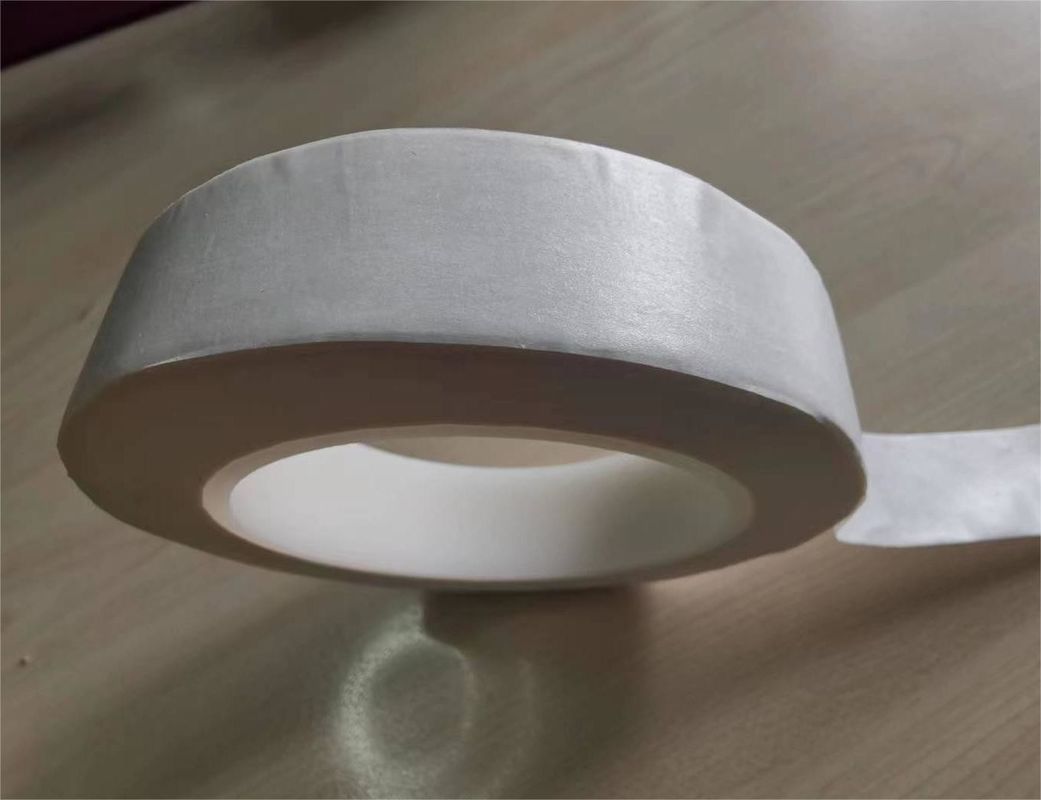

The customized high temperature resistant tape is made by aramid paper, coated with flame retardant acrylic pressure sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃～155℃), and is suitable for F grade heat-resistant electrical and electrical insulation banding, motor and transformer coil insulation banding, etc., can be used as replacement of Nomex adhesive tape for occasions where mechanical strength is not high.
Applications:
※ For high-quality F-class motor and transformer coil end wrapping.
※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.
※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.
Typical properties:
| Type | 472 | ||
| Appearance | White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding | ||
| Total thickness mm±mm | 0.18±0.01 | ||
| Aramid paper Thickness mm±mm | 0.13±0.005 | ||
| Adhesive type | Flame Retardant Acrylic Pressure Sensitive Adhesive | ||
| Breakdown voltage kV | ≥2.8 | ||
| Tensile strength N/10mm | ≥90 | ||
| Elongation at break % | ≥5 | ||
| Adhesion (to steel surface) N/25mm | ≥12.0 | ||
| Ball tack cm | ≤10 | ||
| Heat resistance test 155℃/45min | No tilting on tape end | ||
| Long-term temperature resistance | F class/155℃ | ||
| Flame Retardant | Meet UL510 Flame Retardant | ||

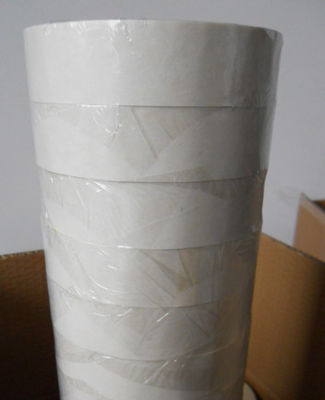

| Supply size Available | in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m | ||
