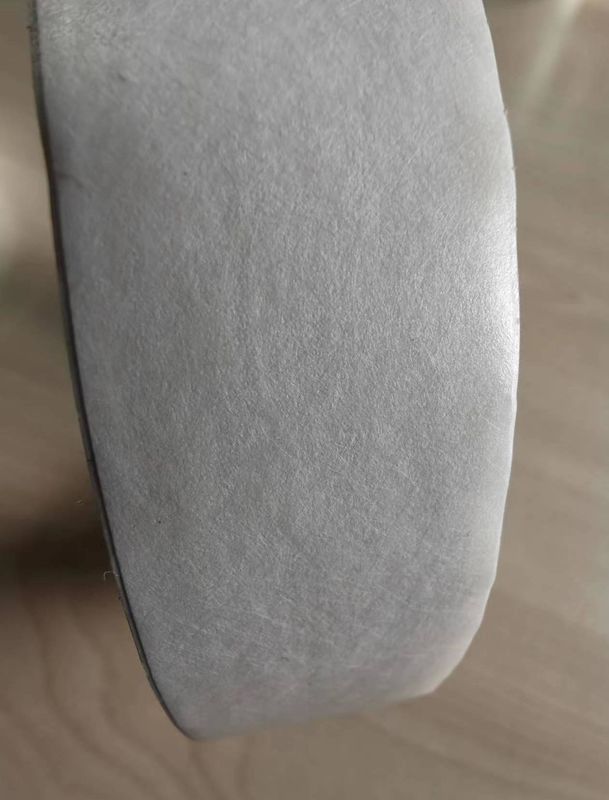

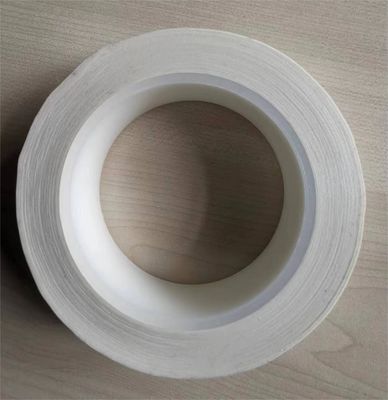

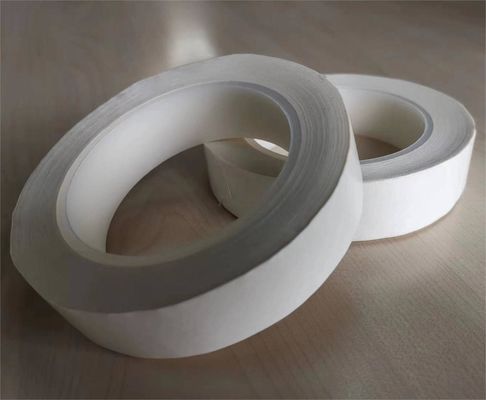

H Grade Heat Resistant Electrical Aramid Paper Adhesive Tape Replace NOMEX Tape

MOQ: 500m2
Price: by quote
Standard Packaging: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period: 30days
Payment Method: T/T, D/P, L/C
Supply Capacity: 10,000m2
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
Aramid adhesive tape 4332
Base Material:
Polyaramid Fiber Paper
Adhesive Type:
Silicone Pressure-sensitive Adhesive
Thickness:
0.10mm
Width:
10mm~980mm
Highlight:

Electrical Aramid Paper Adhesive Tape

,

H Grade Aramid Paper Adhesive Tape

,

Heat Resistant Adhesive Insulation Tape 0.10mm

Product Description

The customized high temperature resistant tape is made by polyaramid fiber paper, coated with imported silicone pressure-sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃～180℃), and is suitable for H grade heat-resistant electrical and electrical insulation banding, mobile phone accessories insulation and lithium-manganese battery insulation banding, etc. Strong insulation protection. It can replace NOMEX tape for occasions where mechanical strength is not high.



TX2 series aramid paper high temperature resistant tape



H Grade Heat Resistant Electrical Aramid Paper Adhesive Tape Replace NOMEX Tape 0



Applications:

※ For high-quality H-class motor and transformer coil end wrapping.

※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.

※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.



Typical properties:



Type 4332
Appearance White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm 0.10±0.01
Aramid paper Thickness mm±mm 0.055±0.005
Adhesive type Silicone Pressure Sensitive Adhesive
Breakdown voltage kV ≥2
Tensile strength N/10mm ≥30
Elongation at break % ≥4
Adhesion (to steel surface) N/25mm ≥7.5
Long-term temperature resistance H class/180℃
Supply size Available in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m
