HVAC Foil Scrim Tape Aluminium Foil Tape High Flexibility

Products

Heat Resistant Insulation Tape

Aluminum Foil Glass Cloth Tape

Aluminum Foil Fiberglass Cloth

Electrical Insulation Board

info@un-tex.com

0086-13052726305

Contact Now

HVAC Foil Scrim Tape Aluminium Foil Tape High Flexibility

MOQ:	6,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

FS1835B

Adhesive Type:

High Performance Solvent Rubber-resin Adhesive

Service Temperature Range:

-20 ~ +80 °C

Backing Thickness:

0.100±0.010mm

Cut Roll Width:

48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Scrim:

5mmx5mm Square

Backing Material:

Scrim Reinformed Al Foil 18um

Releasing Paper:

White Releasing Paper

Highlight:

HVAC Foil Scrim Tape

Foil Scrim Tape High Flexibility

0.1mm aluminium foil tape

Product Description

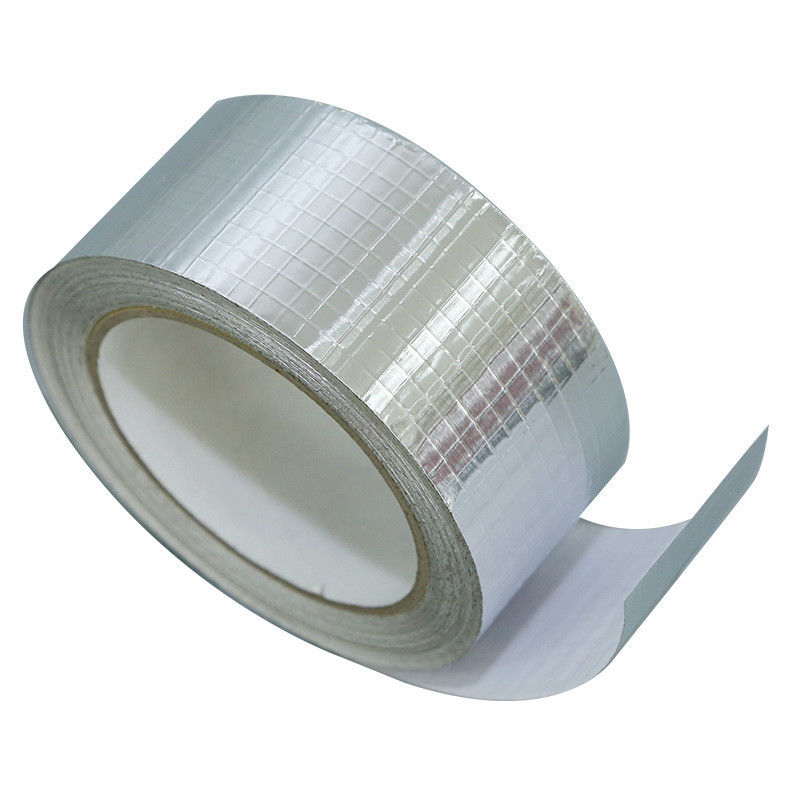

High Quality Foil-Scrim Tape high flexibility with reinforcement

HVAC Aluminium Foil Laminated Scrim Mesh Tape High Flexibility Tape

PRODUCT DESCRIPTION

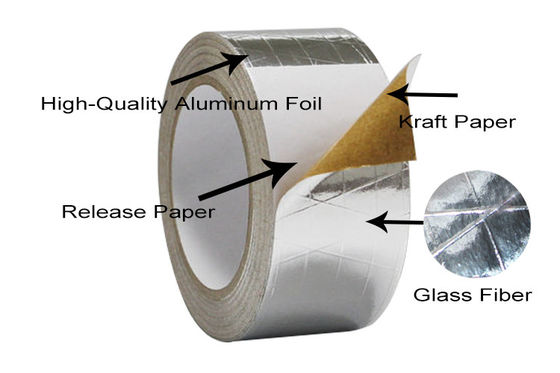

Foil-Scrim backing (Foil: 18u / 2-way Scrim: 5mmx5mm), combined with high performance solvent rubber-resin adhesive, protected by an easy-release silicone release paper.

FEATURES

• Foil-Scrim backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim Facing joints and seams sealing in HVAC ductwork application.

• Low moisture vapor transmission rate makes FS1835B an excellent vapor barrier.

• Service Temperature range from -20 ~ +80 °C (-4~ +176 °F).

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	METRIC	TEST METHOD
Backing Thickness	0.100±0.010mm	PSTC-133
Total Thickness	0.145±0.0145 mm	PSTC-133
Adhesive weight g/m2	60±5 g/m2	Scale
Adhesion to Steel	≥30 N/25mm	PSTC-101
Ball Tack(Steel ball #)	≥23 #	JIS Z0237
Service Temperature	-20 ~ +80 °C	------------
Applying Temperature	+10 ~ 40 °C	------------

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
