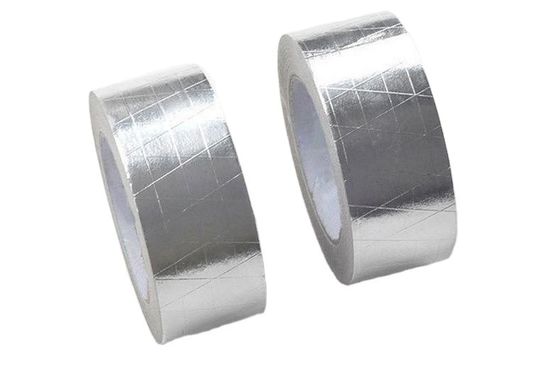

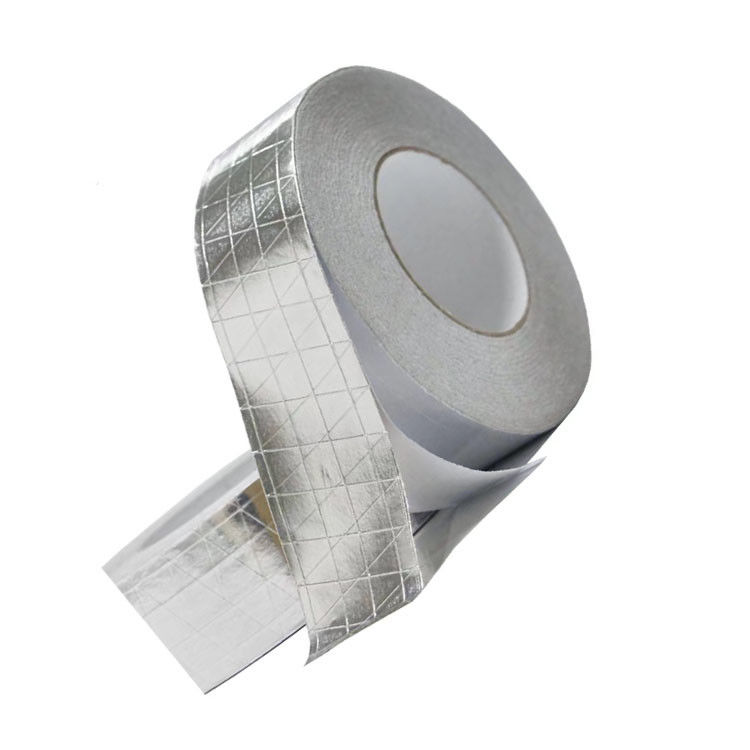

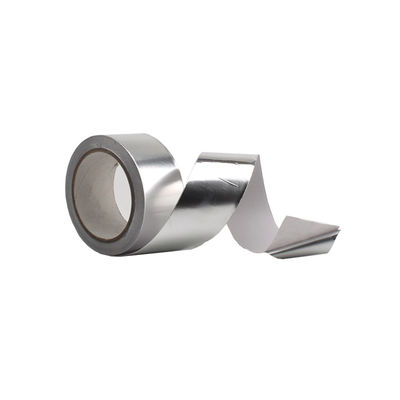

Name: HVAC Sealing Foil Scrim Tape High Adhesive Strength
Brand: UN.Tex (Dalian) Co.,Ltd
SKU: AF7105A
Price: 499.50 USD
Availability: InStock

MOQ:	10,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AF7105A

Adhesive Material:

High Performance Synthetic Rubber Resin Adhesive

Backing Thickness:

0.120

Service Temperature:

-20 ~ +80 °C

Cut Roll Width:

48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")

Backing Material:

Craft Paper And Scrim Reinformed Al Foil 7um

Scrim Size:

3-way

Releasing Paper:

White Releasing Paper

Highlight:

HVAC Sealing Foil Scrim Tape

Foil Scrim Tape High Adhesive Strength

3 way fsk insulation tape

Product Description

High Quality Foil-Scrim-Kraft Tape

Aluminium Foil-Scrim-Kraft Tape HVAC sealing high adhesive strength

Foil-Scrim-PE backing (Foil: 7u / 2-way Scrim: 5mmx5mm / PE:38U), combined with a high performance Rubber Resin adhesive, protected by an easy-release silicone release paper.

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	METRIC	TEST METHOD
Backing Thickness	0.120 mm	PSTC-133
Total Thickness	0.170 mm	PSTC-133
Tensile strength	120N/25mm	PSTC-131
Adhesion to Steel	≥25 N/25mm	PSTC-101
Elongation	1%	PSTC-131
Service Temperature	-20 ~ +80 °C	------------
Applying Temperature	+10 ~ 40 °C	------------

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
