0.12mm Fsk Foil Scrim Kraft High Performance Rubber Resin Adhesive

MOQ:	6,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AF7105B

Material:

High Performance Rubber Resin Adhesive

Backing Thickness:

0.120mm

Service Temperature:

-20 ~ +80 °C

Cut Roll Width:

48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")

Backing Material:

Scrim + Kraft Reinformed Al Foil 7um

Scrim Size:

2-way 14mmx14mm

Releasing Paper:

Easy-release Silicone Release Paper

Highlight:

0.12mm fsk foil scrim kraft

fsk foil scrim kraft 0.12mm

0.12mm foil scrim kraft tape

Product Description

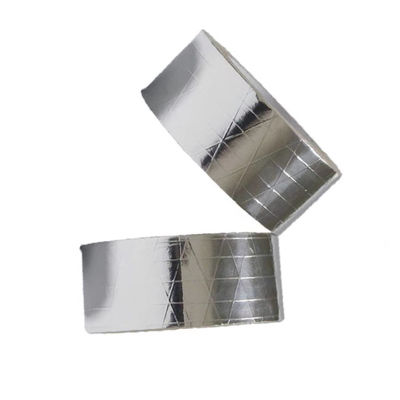

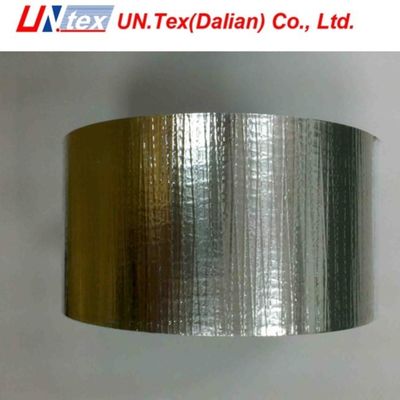

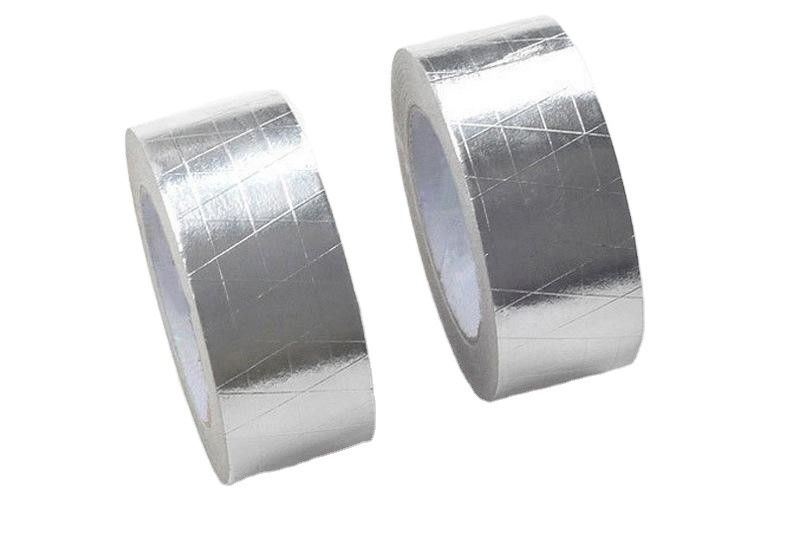

High Quality Foil-Scrim-Kraft Tape

PRODUCT DESCRIPTION

Foil-Scrim-Kraft backing (Foil: 7u / 2-way Scrim: 14mmx14mm / Kraft paper), combined with a high performance Synthetic Rubber Resin adhesive, protected by an easy-release silicone release paper.

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	METRIC	TEST METHOD
Backing Thickness	0.120mm	PSTC-133
Total Thickness	0.17mm	PSTC-133
Tensile strength	120N/25mm	PSTC-131
Adhesion to Steel	25N/25mm	PSTC-101
Ball Tack	5cm	PSTC-6
Service Temperature	-20 ~ +80 °C	------------
Applying Temperature	+10 ~ 40 °C	------------

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Scrim- Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m

Tolerance:

Weight and thickness: 10%; Width: ±3mm, Length: Cut roll: ±0.3m, Jumbo Roll ±0.5%
