Product Details:
|
| Material: | Cold Weather Solvent Acrylic Adhesive | Backing Thickness: | 0.170±0.015mm |
|---|---|---|---|
| Service Temperature: | -30 ~ +120°C | Backing Material: | Scrim And Kraft Reinformed Al Foil 18um |
| Scrim Size: | 3-way | Releasing Paper: | Easy-release Silicone Release Paper |
| High Light: | Cold Weather Foil Scrim Tape,High Adhesive Strength Foil Scrim Tape,0.17mm scrim foil |
||

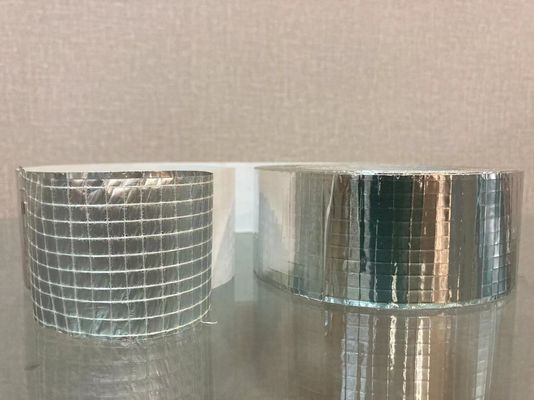

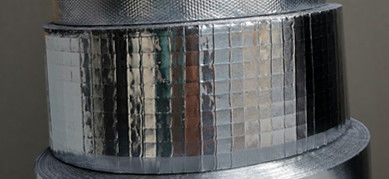

High Quality Foil-Scrim-PE Tape suitable for rough surface, high adhesive strength with big adhesive volume
PRODUCT DESCRIPTION
Foil-Scrim-Kraft backing (Foil: 7u / 3-way Scrim / Kraft paper), combined with a high performance cold weather solvent adhesive, protected by an easy-release silicone release paper.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.120mm | PSTC-133 |
| Total Thickness | 0.17mm | PSTC-133 |
| Tensile strength | 120N/25mm | PSTC-131 |
| Adhesion to Steel | ≥22 N/25mm | PSTC-101 |
| Ball Tack | 5cm | PSTC-6 |
| Service Temperature | -30 ~ +120 °C | ------------ |
| Applying Temperature | +20 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
Tolerance:
Weight and Thickness: 10%; Width: ±3mm, Length: Cut roll: ±0.3m,Jumbo roll ±0.5%.
