Product Details:
|
| Material: | High Performance Rubber Resin Adhesive | Backing Thickness: | 0.150±0.015mm |
|---|---|---|---|
| Service Temperature: | -20 ~ +80 °C | Backing Material: | Scrim Reinformed Al Foil 18um |
| Scrim Size: | 5mmx5mm | Releasing Paper: | Craft Paper |
| High Light: | 2 Way hvac aluminum tape,Aluminum hvac aluminum tape,0.15mm self adhesive aluminium tape |
||

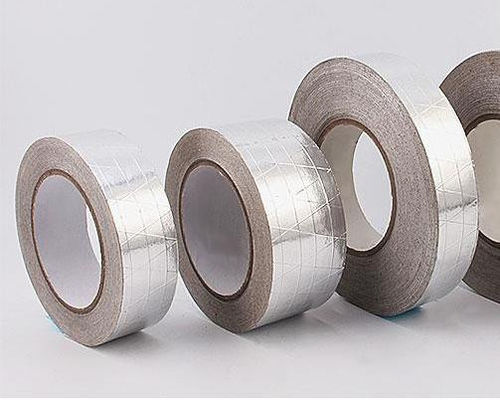

High Quality Foil-Scrim-PE Tape suitable for rough surface, high adhesive strength with big adhesive volume
HVAC Accessories Al-Foil Scrim Tape, Aluminum FSK Adhesive 2 Way Solvent Foil Scrim Tape
PRODUCT DESCRIPTION

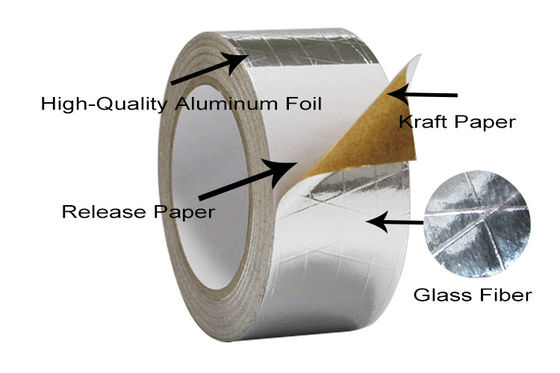

Foil-Scrim-PE backing (Foil: 18u / 2-way Scrim: 5mmx5mm / PE:38U), combined with a high performance Rubber Resin adhesive, protected by an easy-release silicone release paper.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.150±0.015mm | PSTC-133 |
| Total Thickness | 0.220±0.022mm | PSTC-133 |
| Adhesive weight g/m2 | Scale | 135±13.5 g/m2 |
| Adhesion to Steel | ≥22 N/25mm | PSTC-101 |
| Ball Tack(Steel ball #) | ≥25 # | JIS Z0237 |
| Service Temperature | -20 ~ +80 °C | ------------ |
| Applying Temperature | +10 ~ 40 °C | ------------ |
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
