Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant

Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant
Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant

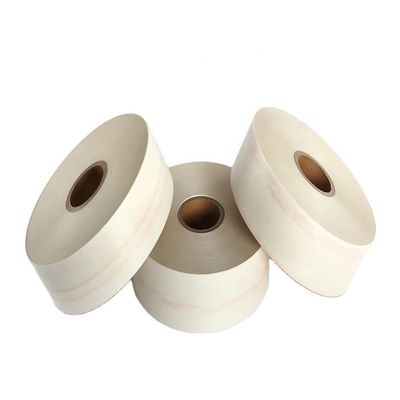

Large Image :  Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: Aramid adhesive tape 432
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: by quote
Packaging Details: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Time: 30days
Payment Terms: T/T, D/P, L/C
Supply Ability: 10,000m2

Flame Retardant Electrical Insulation Tape White Self Adhesive Transformer Winding Heat Resistant

Description
Base Material: Aramid Tape Adhesive Type: Acrylic Adhesive
Thickness: 0.10mm Width: 10mm~980mm
Highlight:

Flame Retardant electrical insulation tape white

,

electrical insulation tape white Self Adhesive

,

Heat Resistant waterproof electrical insulation tape

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape



TX2 series aramid paper high temperature resistant tape



Applications:

※ For high-quality F-class motor and transformer coil end wrapping.

※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.

※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.



Typical properties:

Type 432
Appearance White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm 0.105±0.01
Aramid paper Thickness mm±mm 0.06±0.005
Adhesive type Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage kV ≥1.8
Tensile strength N/10mm ≥30
Elongation at break % ≥4
Adhesion (to steel surface) N/25mm ≥12.0
Ball tack cm ≤10
Heat resistance test 155℃/45min No tilting on tape end
Long-term temperature resistance F class/155℃
Flame Retardant Meet UL510 Flame Retardant
Supply size Available in rolls, roll width 10~980mm According to user requirements, roll length 50m±0.5m
