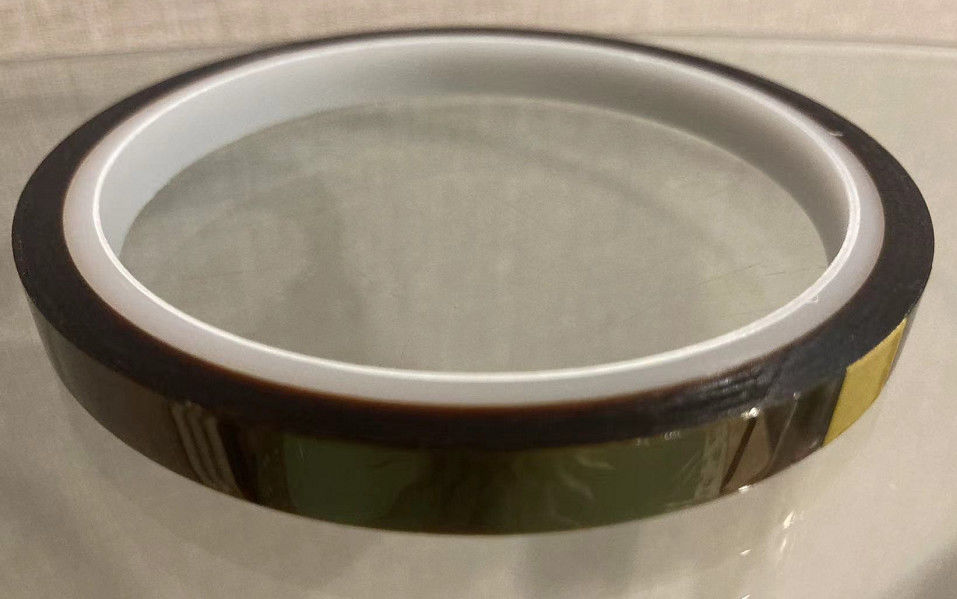

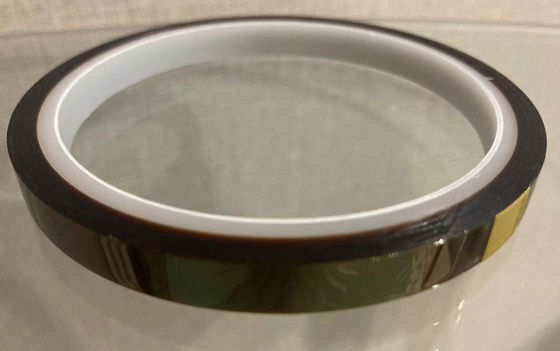

3mm-500mm Waterproof Electrical Insulation Tape Amber Transparent
  • name
  • name
  • name

3mm-500mm Waterproof Electrical Insulation Tape Amber Transparent

MOQ: 500m2
Price: Usd1~5/roll
Standard Packaging: Export carton case
Delivery Period: 35 working days
Payment Method: L/C, T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
2321L
Base Material:
Polyimide Film
Adhesive:
Imported Silicone Adhesive
Base Film Thickness:
25um
Tape Thickness:
60um
Width:
3mm~500mm
Length:
33m, 33~200m For 500mm Width
Color:
Amber Transparent
Releasing Film:
Fluoroplastic Release Film
Releasing Film Thickness:
75um
Highlight:

500mm waterproof electrical insulation tape

,

3mm waterproof electrical insulation tape

,

Amber Transparent electrical insulation tape

Product Description

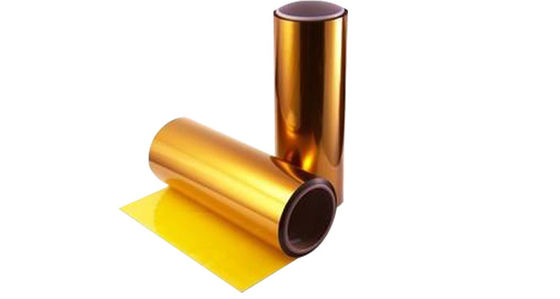

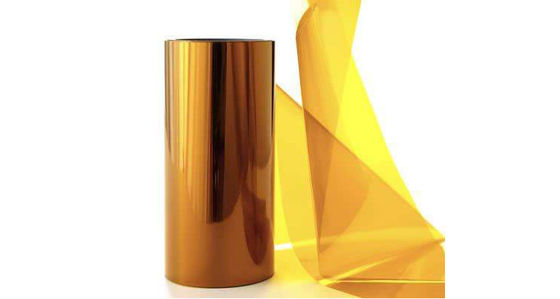

PI film heat-resistant protection film



Base film: PI film

Adhesive: silcone adhesive

Releasing film: Fluoroplastic releasing film



Appearance:

Amber transparent, surface smooth, no crepe,bubble,foreign objects,no tearing and transfer of glue layer when unwinding



Charactor:

1. Base material with high mechanical strength, good electrial insulation strength, size stable, high temperature resistant.

2. Good performance on solvent resistant and water resistant.

3. Long term working temperature: 220°C, short term 280°C.



Application:

1. Electronic protection during bonding process: especially suitable for SMT wave soldering, temperature protection of reflow soldering, electronic switches, PCB board gold finger protection, SMD electronic transformers, relays and other electronic components that require high temperature and moisture protection.

2. Electrical insulation wrapping: used for coil insulation wrapping of high-demand H-class motors and transformers, wrapping and fixing the ends of high-temperature coils, temperature-resistant thermal resistance protection and other bonding insulation under high-temperature working conditions



Type #  2321L
Total thickness                    mm 0.06±0.003
Base film thickness             mm 0.025±0.003
Break down voltage            KV ≥5%
Insulation resistance           Ω ≥1013
Tensile strength                  N/10mm ≥40
Elongation                          % ≥45
Adhetion strength to steel   N/10mm ≥2.4
Working temperature         °C -73~280

Chemical resistance

20% HCL NaOH/10Hrs

 Bonding well,do delamination,no glue layer transfer
Releasing film   0.075mm
