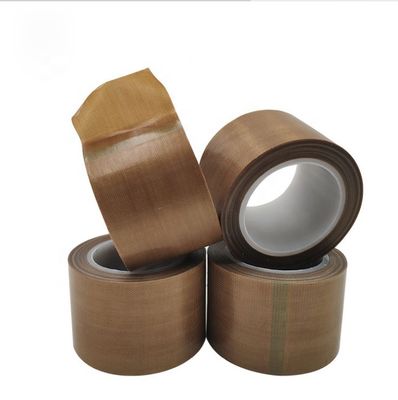

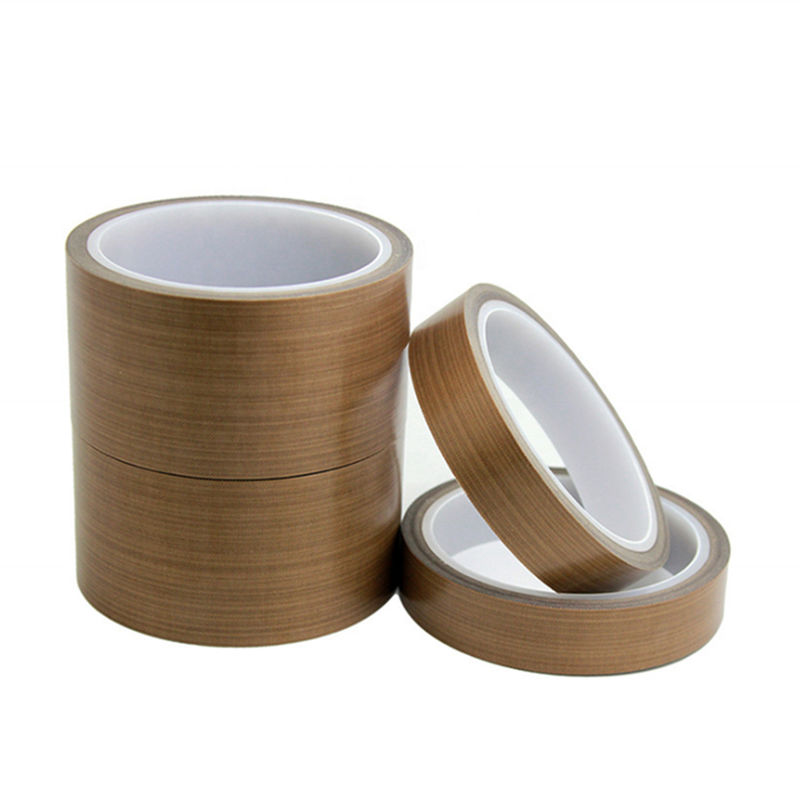

PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape

PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape
PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape

Large Image :  PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 7361
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 21 working days
Supply Ability: 50,000m2 per month

PTFE Electrical Adhesive Insulation Tape H Grade Silicone Adhesive Tape

Description
Base Material: Imported Glass Cloth Adhesive Type: Silicone Adhesive
Grade: H Grade Releasing Paper: No
Base Cloth Thickness: 0.13mm Tape Thickness: 0.17mm
Color: Grey Working Temp: 220°C Long Time, 260°C Short Time
Highlight:

Electrical Adhesive Insulation Tape

,

PTFE Adhesive Insulation Tape

,

H Grade Silicone Adhesive Tape

Glass Cloth Adhesive Tape H Grade Silicone Adhesive Tape Electrical Insulation, PTFE Adhesive Tape



Glass cloth adhesive tape



Type # 7361

Base cloth: Imported E-glass cloth treated by PTFE emulsion

Adhesive: Silicone adhesive

Coating: Single side coated





Typical technical data:





1

Base cloth Thicness

mm

0.130±0.01

2

Tape thickness

mm

0.170±0.01

3

Apperance



Grey tape, surface smooth, when unwrapping, there is no crackling sound and adhesive transfer phenomenon.

4

Tensile strength

N/25mm

≥300

5

Elongation

%

≥3

6

Adhesion strength to steel plate

N/10mm

≥3.0

7

Heating 260°C/30min

No deformation, No tape end backturn

8

Thermal grade

H



Charactor:

1. Stable during long time heating. Long time working temperature: 220°C,short term temperature: 260°C.

2. Flexible and tear resist, good adhesive strength,not easy deformation. Suitable for sticking protection on the surface of various profiles.

3. Surface smooth, Low surface energy, strong anti-stick, anti-fouling and anti-corrosion capabilities.

4. High mechanical strength, suitable for tight and firm coil wrapping.





Application:

1. Explosion-proof and anti-leakage, widely used for insulation and wrapping of high-energy lithium battery.

2. It is used for high temperature protection of electric heating elements, heat insulation and anti-sticking of electric heating sealing machine.
3. Protection of mechanical guide rollers and machinery and equipment that require heat-resistant and anti-sticking treatment, molds, etc.



Packing and storage

The product uses plastic film bag to seal, packed in carton. Stored under room temperature, humid-proof and dust-proof. Storage period:12months.
