Product Details:
|
| Base Material: | Polyimide Film | Adhesive: | Imported Acrylic Adhesive |
|---|---|---|---|
| Base Film Thickness: | 50um | Tape Thickness: | 85um |
| Width: | 3mm~1020mm | Length: | 33m & 50m |
| Color: | Amber Transparent | Thermal Class: | H Class |

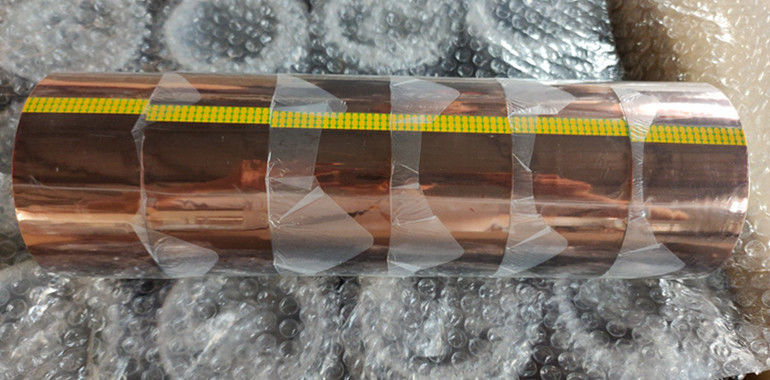

PI film heat-resistant protection film
Base film: PI film
Adhesive: silcone adhesive
Appearance:
Amber transparent, surface smooth, no crepe,bubble,foreign objects,no tearing and transfer of glue layer when unwinding
Charactor:
1. Base material with high mechanical strength, good electrial insulation strength, size stable, high temperature resistant.
2. Solvent resistant, water resistant
| Type # |
231F |
|
| Total thickness mm | 0.085±0.003 | |
| Base film thickness mm | 0.05±0.003 | |
| Break down voltage KV | ≥8 | |
| Tensile strength N/10mm | ≥65 | |
| Elongation % | ≥50 | |
| Adhetion strength to steel N/25mm | ≥8 | |
| Flamability | UL510 | |
| Releasing film | no | |
Application:
1. Protection: for heat resistant and humid resistant
2. Electrical insulation wrapping: used for coil insulation wrapping of high-demand coils, temperature resistant thermal resistance protection, an other bonding insulation under high-temperature working conditions
Storage
Packed by plastic film bag, then in export cartons. Stored under room temperature. Dust proof and humid proof. Storage period: 12month.
