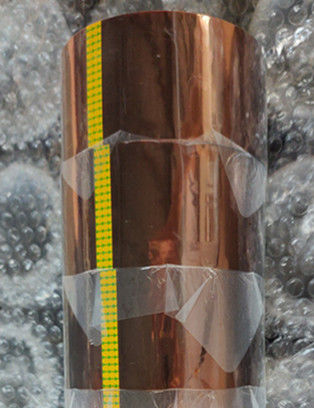

PI film adhesive tape electrial insulation H grade

PI film adhesive tape electrial insulation H grade
PI film adhesive tape electrial insulation H grade

Large Image :  PI film adhesive tape electrial insulation H grade

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 2332
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000m2 per month

PI film adhesive tape electrial insulation H grade

Base Material: Polyimide Film Adhesive: Imported Silicone Adhesive
Base Film Thickness: 50um Tape Thickness: 80um
Width: 3mm~500mm Length: 33m, 33~200m For 500mm Width
Color: Amber Transparent Releasing Film: No

PI film heat-resistant protection film


Base film: PI film

Adhesive: silcone adhesive



Amber transparent, surface smooth, no crepe,bubble,foreign objects,no tearing and transfer of glue layer when unwinding



1. Base material with high mechanical strength, good electrial insulation strength, size stable, high temperature resistant.

2. High bonding strength, heat resistant, no adhesive residue after peeling off.

3. Long term working temperature: 180°C, short term 300°C.


Type # 2332
Total thickness                    mm 0.08±0.003
Base film thickness             mm 0.05±0.003
Break down voltage            KV ≥8
 Weight                                g/m2 105
Tensile strength                  N/10mm ≥65
Elongation                          % ≥50
Adhetion strength to steel   N/10mm ≥2.3
Working temperature         °C -73~280

 Surface resistance   Ω

Releasing film  no



1. Electronic protection during bonding process: especially suitable for SMT wave soldering, temperature protection of reflow soldering, electronic switches, PCB board gold finger protection, SMD electronic transformers, relays and other electronic components that require high temperature and moisture protection.

2. Electrical insulation wrapping: used for coil insulation wrapping of high-demand H-class motors and transformers, wrapping and fixing the ends of high-temperature coils, temperature-resistant thermal resistance protection and other bonding insulation under high-temperature working conditions



Packed by plastic film bag, then in export cartons. Stored under room temperature. Dust proof and humid proof. Storage period: 12month.
