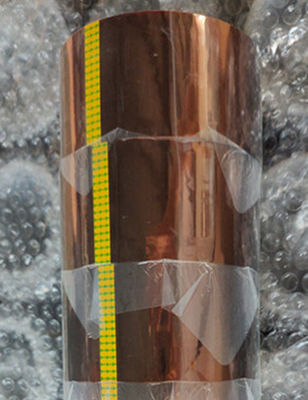

PI film adhesive tape electrial insulation H grade
  • name

PI film adhesive tape electrial insulation H grade

MOQ: 500m2
Price: Usd1~5/roll
Standard Packaging: Export carton case
Delivery Period: 35 working days
Payment Method: L/C, T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
2332
Base Material:
Polyimide Film
Adhesive:
Imported Silicone Adhesive
Base Film Thickness:
50um
Tape Thickness:
80um
Width:
3mm~500mm
Length:
33m, 33~200m For 500mm Width
Color:
Amber Transparent
Releasing Film:
No
Highlight:

PI film adhesive tape

Product Description

PI film heat-resistant protection film



Base film: PI film

Adhesive: silcone adhesive



Appearance:

Amber transparent, surface smooth, no crepe,bubble,foreign objects,no tearing and transfer of glue layer when unwinding



Charactor:

1. Base material with high mechanical strength, good electrial insulation strength, size stable, high temperature resistant.

2. High bonding strength, heat resistant, no adhesive residue after peeling off.

3. Long term working temperature: 180°C, short term 300°C.



Type # 2332
Total thickness                    mm 0.08±0.003
Base film thickness             mm 0.05±0.003
Break down voltage            KV ≥8
 Weight                                g/m2 105
Tensile strength                  N/10mm ≥65
Elongation                          % ≥50
Adhetion strength to steel   N/10mm ≥2.3
Working temperature         °C -73~280

 Surface resistance   Ω

  1013
Releasing film  no



Application:

1. Electronic protection during bonding process: especially suitable for SMT wave soldering, temperature protection of reflow soldering, electronic switches, PCB board gold finger protection, SMD electronic transformers, relays and other electronic components that require high temperature and moisture protection.

2. Electrical insulation wrapping: used for coil insulation wrapping of high-demand H-class motors and transformers, wrapping and fixing the ends of high-temperature coils, temperature-resistant thermal resistance protection and other bonding insulation under high-temperature working conditions



Storage

Packed by plastic film bag, then in export cartons. Stored under room temperature. Dust proof and humid proof. Storage period: 12month.
