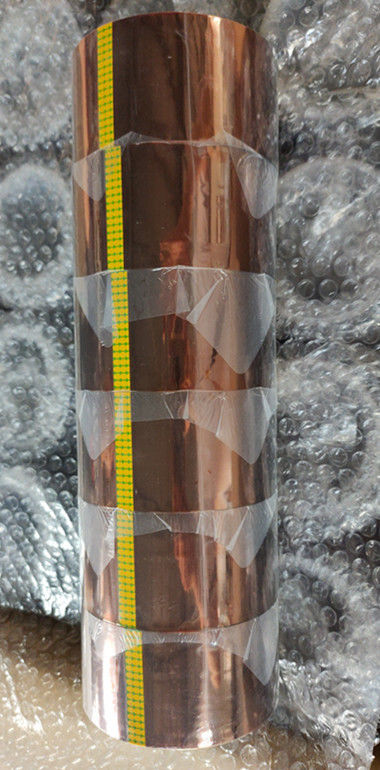

PI film adhesive tape H grade electrial insulation

PI film adhesive tape H grade electrial insulation
PI film adhesive tape H grade electrial insulation

Large Image :  PI film adhesive tape H grade electrial insulation

Product Details:
Place of Origin: CHINA
Brand Name: No
Certification: RoHS
Model Number: K2304
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000m2 per month

PI film adhesive tape H grade electrial insulation

Base Material: Polyimide Film Adhesive: USA Imported Silicone Adhesive
Base Film Thickness: 12.5um Tape Thickness: 35um
Width: 3mm~500mm Length: 33m
Color: Amber Transparent BDV: ≥75KV/mm
Working Temp: -73~300℃

PI film heat-resistant protection film


Base film: PI film

Adhesive: silcone adhesive



Amber transparent, surface smooth, no crepe,bubble,foreign objects,no tearing and transfer of glue layer when unwinding



1. Base material with high mechanical strength, good electrial insulation strength, size stable, high temperature resistant.

2. High bonding strength, heat resistant, no adhesive residue after peeling off.

3. Long term working temperature: 180°C, short term 280°C.


Type # K2304
Total thickness                    mm 0.035±0.003
Base film thickness             mm


Break down voltage            KV/mm ≥75
  Weight                               g/m2 45
Tensile strength                  N/10mm ≥30
Elongation                          % ≥40
Adhetion strength to steel   N/10mm ≥1.5
Working temperature         °C -73~300


1. Electronic protection during bonding process: especially suitable for SMT wave soldering, temperature protection of reflow soldering, electronic switches, PCB board gold finger protection, SMD electronic transformers, relays and other electronic components that require high temperature and moisture protection.

2. Electrical insulation wrapping: used for coil insulation wrapping of high-demand H-class motors and transformers, wrapping and fixing the ends of high-temperature coils, temperature-resistant thermal resistance protection and other bonding insulation under high-temperature working conditions



Packed by plastic film and bag, and then in cartons. Room temperature storage, dust-proof and humid-proof, storage period: 12months.
