Product Details:
|
| Base Material: | Aramid Paper | Adhesive Type: | Acrylic Adhesive |
|---|---|---|---|
| Thickness: | 0.13mm | Width: | 10mm~980mm |
| Thermal Class: | F Class | Length: | 50m Or At Buyer's Option |
| Flame Resistance: | Equal To UL510 | Adhesion Strength: | ≥12N/25mm |
| Highlight: | High Adhesion Adhesive Insulation Tape,Adhesive Insulation Tape Acrylic,0.13mm Acrylic adhesive tape |
||

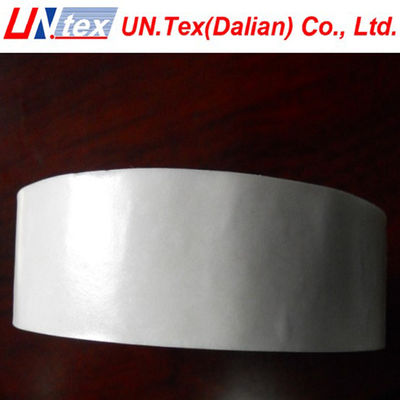

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape
TX2 series aramid paper high temperature resistant tape
Applications:
※ For high-quality F-class motor and transformer coil end wrapping.
※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.
※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.
Typical properties:
| Type | 452 | ||
| Appearance | White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding | ||
| Total thickness mm±mm | 0.13±0.01 | ||
| Aramid paper Thickness mm±mm | 0.08±0.005 | ||
| Adhesive type | Flame Retardant Acrylic Pressure Sensitive Adhesive | ||
| Breakdown voltage kV | ≥2.4 | ||
| Tensile strength N/10mm | ≥45 | ||
| Elongation at break % | ≥4 | ||
| Adhesion (to steel surface) N/25mm | ≥12.0 | ||
| Ball tack cm | ≤10 | ||
| Heat resistance test 155℃/45min | No tilting on tape end | ||
| Long-term temperature resistance | F class/155℃ | ||
| Flame Retardant | Meet UL510 Flame Retardant | ||
| Supply size Available | in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m | ||
Packaging and storage:
This product is sealed in a plastic film bag and packed in a carton. Store at room temperature, pay attention to moisture and dust, and the storage period is 12 months.
