Aramid paper adhesive tape, replace Nomex adhesive tape F class

Aramid paper adhesive tape,  replace Nomex adhesive tape F class
Aramid paper adhesive tape,  replace Nomex adhesive tape F class

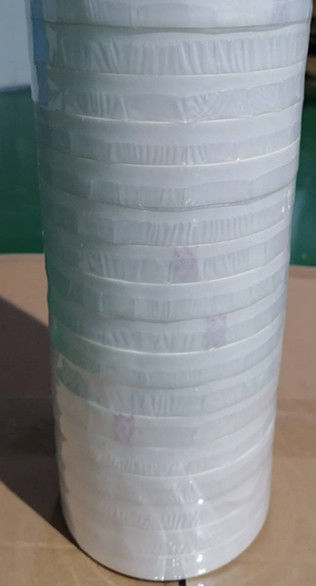

Large Image :  Aramid paper adhesive tape, replace Nomex adhesive tape F class

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: Aramid adhesive tape 432
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: by quote
Packaging Details: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Time: 30days
Payment Terms: T/T, D/P, L/C
Supply Ability: 10,000m2

Aramid paper adhesive tape, replace Nomex adhesive tape F class

Description
Base Material: Aramid Adhesive Tape Adhesive Type: Acrylic Adhesive
Thickness: 0.10mm Width: 10mm~980mm

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape



Type No. 432



Typical properties:

Type 432
Appearance White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm 0.105±0.01
Aramid paper Thickness mm±mm 0.06±0.005
Adhesive type Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage kV ≥1.8
Tensile strength N/10mm ≥30
Elongation at break % ≥4
Adhesion (to steel surface) N/25mm ≥12.0
Ball tack cm ≤10
Heat resistance test 155℃/45min No tilting on tape end
Long-term temperature resistance F class/155℃
Flame Retardant Meet UL510 Flame Retardant
Supply size Available in rolls, roll width 10~980mm According to user requirements, roll length 50m±0.5m
