Product Details:
|
| Base Material: | Aramid Adhesive Tape | Adhesive Type: | Acrylic Adhesive |
|---|---|---|---|
| Thickness: | 0.18mm | Width: | 10mm~980mm |

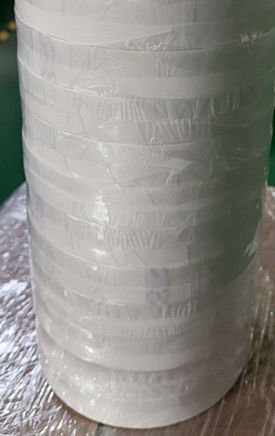

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape
TX2 series aramid paper high temperature resistant tape
The customized high temperature resistant tape is made by polyaramid fiber paper, coated with acrylic pressure-sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃～155℃), and is suitable for F grade heat-resistant electrical and electrical insulation banding, mobile phone accessories insulation and lithium-manganese battery insulation banding, etc. Strong insulation protection. It can replace NOMEX tape for occasions where mechanical strength is not high
Typical properties:
| Type | 472 | ||
| Appearance | White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding | ||
| Total thickness mm±mm | 0.18±0.01 | ||
| Aramid paper Thickness mm±mm | 0.13±0.01 | ||
| Adhesive type | Flame Retardant Acrylic Pressure Sensitive Adhesive | ||
| Breakdown voltage kV | ≥2.8 | ||
| Tensile strength N/10mm | ≥90 | ||
| Elongation at break % | ≥5 | ||
| Adhesion (to steel surface) N/25mm | ≥12.0 | ||
| Ball tack cm | ≤10 | ||
| Heat resistance test 155℃/45min | No tilting on tape end | ||
| Long-term temperature resistance | F class/155℃ | ||
| Flame Retardant | Meet UL510 Flame Retardant | ||
| Supply size Available | in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m | ||
.
