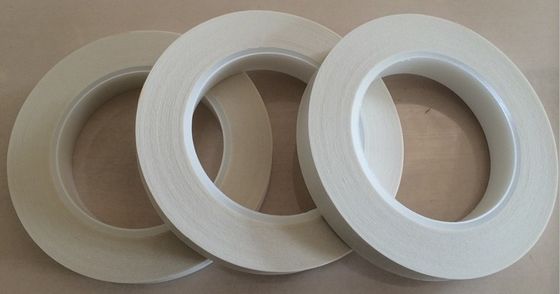

Aramid paper adhesive tape, can be used as replacement of Nomex adhesive tape F class

MOQ:	500m2
Price:	by quote
Standard Packaging:	Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Period:	30days
Payment Method:	T/T, D/P, L/C
Supply Capacity:	10,000m2

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Certification

RoHS

Model Number

452

Base Material:

Aramid Adhesive Tape

Adhesive Type:

Acrylic Adhesive

Thickness:

0.13mm

Roll Length:

50m

Width:

10mm~980mm

Color:

Natural

Highlight:

Nomex adhesive tape Aramid paper

Product Description

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape

TX2 series aramid paper high temperature resistant tape

The customized high temperature resistant tape is made by polyaramid fiber paper, coated with acrylic pressure-sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃～155℃), and is suitable for F grade heat-resistant electrical and electrical insulation banding, mobile phone accessories insulation and lithium-manganese battery insulation banding, etc. Strong insulation protection. It can replace NOMEX tape for occasions where mechanical strength is not high

Features:

a. Good thermal stability, F-class long-term heat resistance of 155 ℃.

b. Soft and tear-resistant, strong cohesive force, not easy to deform, suitable for adhesion protection on the surface of various profiles;

c. It is suitable for wrapping the coil tightly and firmly without tilting the tape end.

Applications:

※ For high-quality F-class motor and transformer coil end wrapping.

※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.

※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.

Typical properties:

Type	452
Appearance	White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm	0.13±0.01
Aramid paper Thickness mm±mm	0.08±0.005
Adhesive type	Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage kV	≥2.4
Tensile strength N/10mm	≥45
Elongation at break %	≥4
Adhesion (to steel surface) N/25mm	≥12.0
Ball tack cm	≤10
Heat resistance test 155℃/45min	No tilting on tape end
Long-term temperature resistance	F class/155℃
Flame Retardant	Meet UL510 Flame Retardant
Supply size Available	in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m

* Other specifications of products can be negotiated and supplied according to user needs.

Packaging and storage:

This product is sealed in a plastic film bag and packed in a carton. Store at room temperature, pay attention to moisture and dust, and the storage period is 12 months.
