Product Details:
|
| Base Material: | Aramid Paper | Adhesive: | Acrylic Adhesive |
|---|---|---|---|
| Color: | Black | Base Paper Thickness: | 80um |
| Tape Thickness: | 100um | Width: | 10~480mm |
| Length: | 50m & 100m | Thermal Grade: | F Class |
| High Light: | Black Adhesive Insulation Tape,Adhesive Insulation Tape 80um,ramid Paper black electrical insulation tape |
||

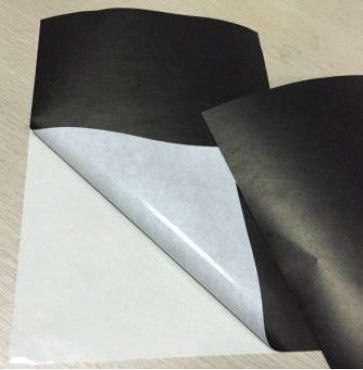

Black Aramid Adhesive Tape
Type # 432BL
Apperance: Paper back coated with black ink, surface smooth, no crepe, bubble, glue particles and foreign objects. Tape back releasing treated,no glue transer when unwinding
Charactor:
1. Good thermal stability, F grade long-term heat resistance of 155 degrees
2. Soft and tear resistant, strong adhesion, not easy to deform, suitable for sticking protection on the surface of different shaped materials.
3. No glue residue, no glue residue when tearing off the tape after long-time high temperature curing
4. Bonding with glassine paper for easy die cutting
Application
1. For the assembly of electronic products with shading requirements
2. It is used for heat insulation and insulation of high-energy lithium batteries, mobile phone accessories, and can also be used as a carrier tape for electronic components.
3. Used for wrapping and insulation of electronic coils such as HVT and HID electric transformer
Typical technical data
| Type # | 432BL |
| Total thickness mm±mm | 0.10±0.005 |
|
Aramid paper thickness mm±mm |
0.08±0.005 |
| Adhesive type | Acrylic adhesive |
| Breakdown voltage KV | ≥1.2 |
| Tensile strength N/10mm | ≥30 |
| Elongation % | ≥4 |
| Adhesion strength to steel plate N/25mm | ≥10 |
| Ball tack 14# cm | ≤9 |
| Heat resistant test 155°C/30min | Tape end no upturn |
