Product Details:
|
Base Material: | Aramid Adhesive Tape | Adhesive Type: | Acrylic Adhesive |
---|---|---|---|
Thickness: | 0.10mm | Roll Length: | 50m |
Width: | 10mm~980mm | Color: | Natural |
Highlight: | 0.10mm white glass cloth tape,white glass cloth tape Natural Color,Acrylic paper adhesive tape |

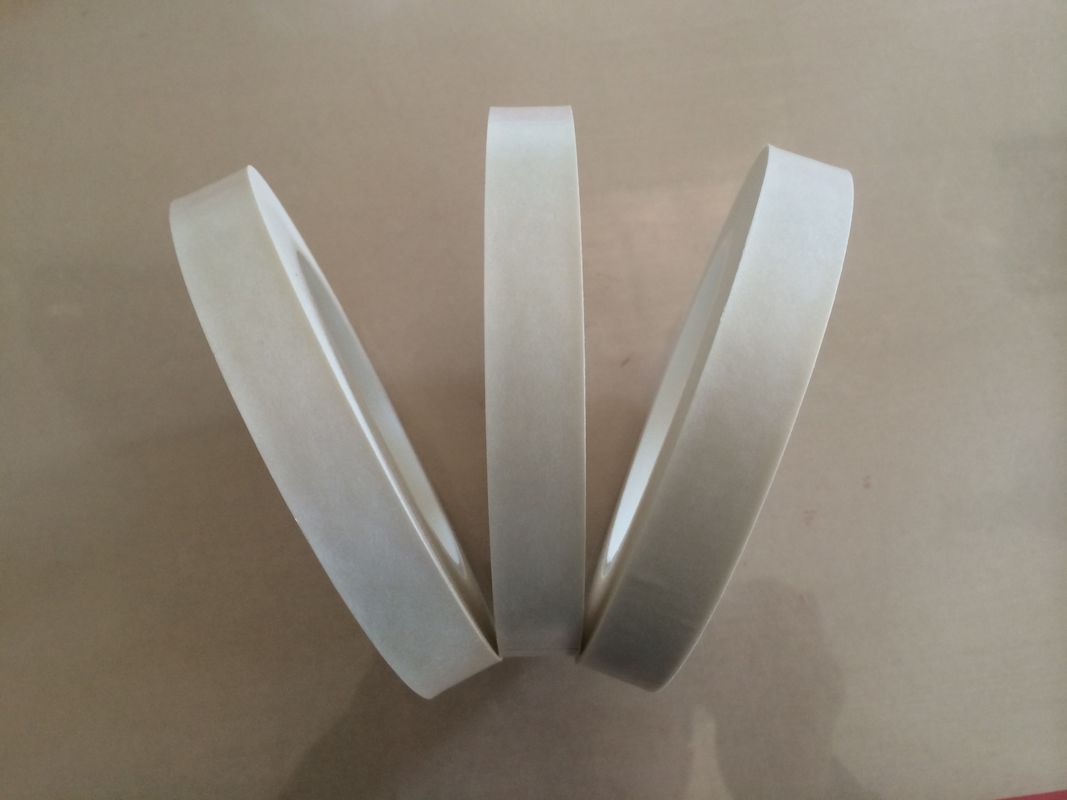

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape
TX2 series aramid paper high temperature resistant tape
The customized high temperature resistant tape is made by polyaramid fiber paper, coated with acrylic pressure-sensitive adhesive on one side undergoing high temperature process. The product has good temperature resistance (-55℃~155℃), and is suitable for F grade heat-resistant electrical and electrical insulation banding, mobile phone accessories insulation and lithium-manganese battery insulation banding, etc. Strong insulation protection. It can replace NOMEX tape for occasions where mechanical strength is not high
Features:
a. Good thermal stability, F-class long-term heat resistance of 155 ℃.
b. Soft and tear-resistant, strong cohesive force, not easy to deform, suitable for adhesion protection on the surface of various profiles;
c. It is suitable for wrapping the coil tightly and firmly without tilting the tape end.
Applications:
※ For high-quality F-class motor and transformer coil end wrapping.
※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.
※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.
Typical properties:
Type | 432 | ||
Appearance | White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding | ||
Total thickness mm±mm | 0.105±0.01 | ||
Aramid paper Thickness mm±mm | 0.06±0.005 | ||
Adhesive type | Flame Retardant Acrylic Pressure Sensitive Adhesive | ||
Breakdown voltage kV | ≥1.8 | ||
Tensile strength N/10mm | ≥30 | ||
Elongation at break % | ≥4 | ||
Adhesion (to steel surface) N/25mm | ≥12.0 | ||
Ball tack cm | ≤10 | ||
Heat resistance test 155℃/45min | No tilting on tape end | ||
Long-term temperature resistance | F class/155℃ | ||
Flame Retardant | Meet UL510 Flame Retardant | ||
Supply size Available | in rolls, roll width 10~980mm According to user requirements, roll length 50m±0.5m |
* Other specifications of products can be negotiated and supplied according to user needs.
Packaging and storage:
This product is sealed in a plastic film bag and packed in a carton. Store at room temperature, pay attention to moisture and dust, and the storage period is 12 months.
