0.125mm Self Adhesive Aluminium Foil
  • name
  • name
  • name

0.125mm Self Adhesive Aluminium Foil

MOQ: 10,000squre meter
Price: by quote
Standard Packaging: Export carton case and pallet
Delivery Period: 30 working days
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Model Number
FEM7225A
Adhesive Type:
High Performance Solvent Acrylic Adhesive
Service Temperature Range:
-30 ~ +120 °C
Backing Thickness:
0.125mm
Cut Roll Width:
48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Scrim:
PE Mesh
Backing Material:
PE Mesh Reinformed Al Foil 7um
Releasing Paper:
White Releasing Paper
Highlight:

0.125mm self adhesive aluminium foil

,

self adhesive aluminium foil 0.125mm

,

0.125mm aluminium insulation tape

Product Description

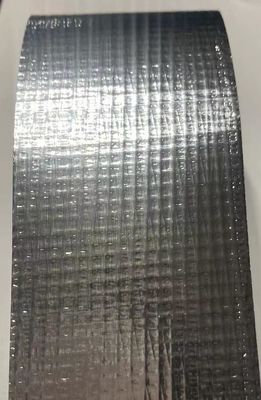

High Quality Foil-PE Mesh Tape



PRODUCT DESCRIPTION

Foil-PE mesh backing  combined with high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.



FEATURES

• Foil-PE Mesh backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-PE mesh Facing joints and seams sealing in HVAC ductwork application.

• Low moisture vapor transmission rate makes  FEM7225A an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F).



TYPICAL PHYSICAL PROPERTIES

PROPERTIES METRIC TEST METHOD
Backing Thickness 0.125mm PSTC-133
Total Thickness 0.175 mm PSTC-133
Tensile strength 100N/25mm PSTC-131
Adhesion to Steel ≥20 N/25mm PSTC-101
Ball Tack  20cm PSTC-6
Service Temperature -30 ~ +120 °C ------------
Applying Temperature +10 ~ 40 °C ------------



TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-PE mesh Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.



PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m

Tags:

0.12mm foil scrim kraft,

0.12mm fsk foil scrim kraft,

fsk foil scrim kraft 0.12mm
