Single-Sided 7 Μm Aluminum Foil Laminated Twill Fiberglass Fabric Heat Reflective
  • name

Single-Sided 7 Μm Aluminum Foil Laminated Twill Fiberglass Fabric Heat Reflective

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 25 days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
UN.Tex
Document
Fiberglass fabrics laminate....pdf
Material Of The Base:
Fiber Glass
Material Of The Coating:
Aluminum Foil
Total Thickness:
0.45±0.05mm
Foil Thickness:
0.07mm
The Weight Of The Base:
430±30 G/m3
Weave:
Twill
Warp/weft Density:
18x12±1 Thread/cm
Maximum Tolerance Temperature Of Base:
550℃
Warp: N/25mm Weft: N/25mm:
≥1850x840
Width:
1000±15mm
Length:
50±0.5 M/roll
Color:
Silver
Highlight:

7um aluminum foil fiberglass fabric

,

430 G/m3 laminated fiberglass fabric

,

single-side foil adhesive insulation tape

Product Description
Product Overview

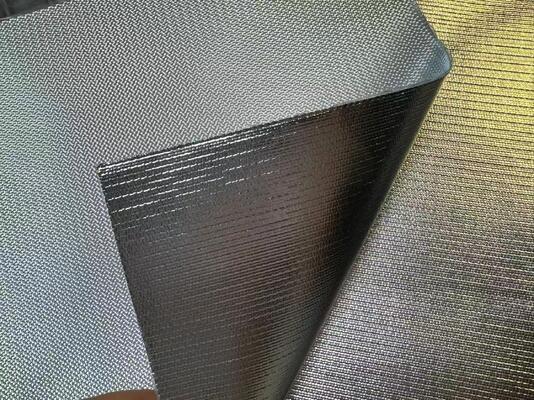

The single-sided aluminum foil-laminated fiberglass fabric uses twill-weave fiberglass as its base, with 7 μm aluminum foil applied to one side. It combines the strength and heat resistance of fiberglass with the heat-reflection and moisture-barrier performance of aluminum foil.

Technical Parameters
Base Material Twill-weave fiberglass fabric
Lamination Single-side aluminum foil, 7 μm
Total Thickness 0.45 ± 0.05 mm
Weight of the Base 430 ± 30 g/m³
Key Advantages
  • 7 μm aluminum foil provides heat reflection and a moisture barrier.
  • Fiberglass base offers high tensile strength and dimensional stability.
  • Temperature resistance: base fabric up to 550 °C; adhesive up to 150 °C.
Applications
  • Thermal insulation and heat-reflective wrapping for pipes, equipment, and tanks
  • Moisture-barrier and protective wrapping
  • Reinforcement or barrier layers in composites
Frequently Asked Questions
Q1: What is the base material and weave?

A: The base is twill-weave fiberglass fabric.

Q2: Can width or roll length be customized?

A: Please contact us with your requirements to confirm availability.
