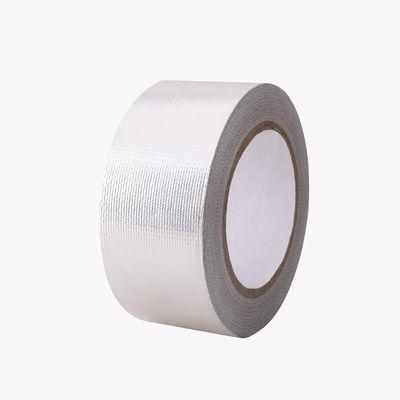

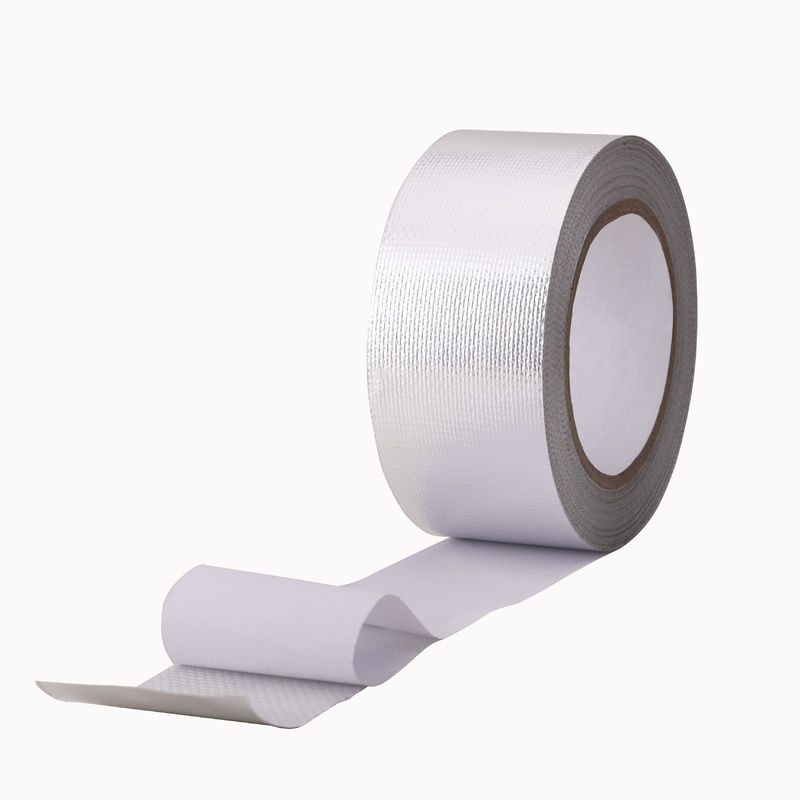

Hot Melt Glass HVAC Aluminum Duct Tape 18um With Releasing Paper
  • name
  • name

Hot Melt Glass HVAC Aluminum Duct Tape 18um With Releasing Paper

MOQ: 10,000squre meter
Price: by quote
Standard Packaging: Export carton case and pallet
Delivery Period: 30 working days
Payment Method: L/C, T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Detail Information
Place of Origin
china
Model Number
AG1826WL/H
Backing Material:
18u Foil / FR Glue / 8x8 Mesh Glass Cloth
Adhesive:
Solvent Acrylic Adhesive
Service Temperature Range:
-30 +120 C (-22~ +248 F)
Backing Thickness:
0.15±0.015mm
Adhesive Weight:
70±5g/m2
Fire Rating:
Class O (BS476 Pt 6 & 7)
Releasing Paper:
No Releasing Paper
Tape Thickness:
0.19±0.019mm
Highlight:

Hot Melt Glass hvac aluminum duct tape

,

hvac aluminum duct tape 18um

,

18um hvac tape heat resistant

Product Description

Hot Melt Glass HVAC Fiber Cloth Aluminium Foil Adhesive Tape, Fiberglass Cloth Reinfoiced With Releasing Paper



PRODUCT DESCRIPTION

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance flame retardant deep cold weather solvent acrylic adhesive.



FEATURES

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes AG1826WL/H an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)



TYPICAL PHYSICAL PROPERTIES

PROPERTIES METRIC TEST METHOD
Backing Thickness 0.15±0.015mm PSTC-133
Total Thickness 0.19±0.019mm PSTC-133
Adhesive weight 70±5g/m2 Scale
Adhesion to Steel ≥20 N/25mm PSTC-101
Ball Tack(Steel ball #) ≥27 # JIS Z0237
Service Temperature -30 ~ +120 °C ------------
Fire Rating Class O BS476 Pt 6 & 7





TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.



PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m

Tags:

0.15mm Aluminum Foil Glass Cloth Tape,

Flame Retardant Aluminum Foil Glass Cloth Tape,

Aluminum Foil Glass Cloth Tape Self Adhesive
