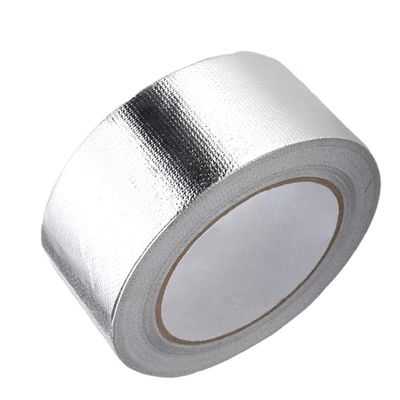

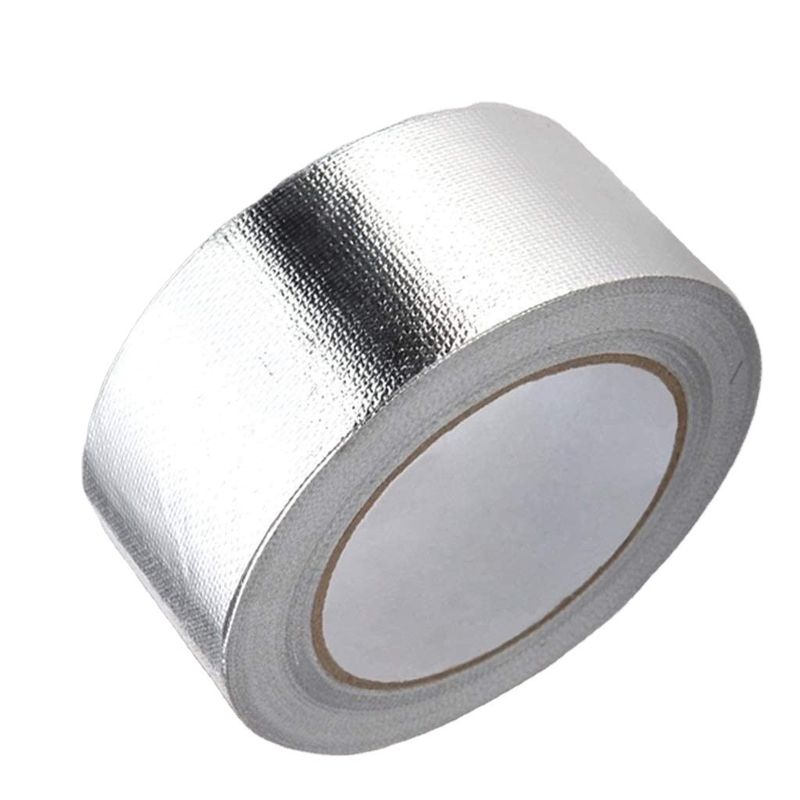

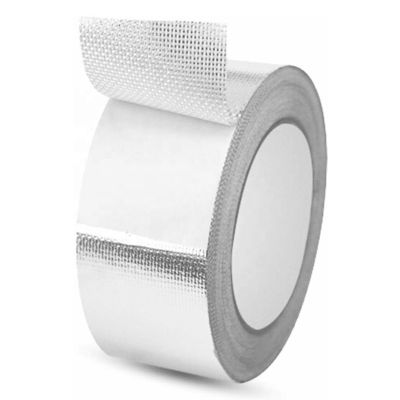

Flame Retardant Aluminum Foil Glass Cloth Tape 0.15mm

MOQ:	10,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AG-1805HK

Adhesive Type:

High Performance Rubber Resin Adhesive

Backing Thickness Um:

0.15mm

Fire Rating:

Class O

Cut Roll Width:

48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Log Roll Width:

1000mm，1200mm

Backing Mateiral:

Al Foil Laminated Glass Cloth

Total Thickness:

0.250mm

Highlight:

Flame Retardant Aluminum Foil Glass Cloth Tape

Aluminum Foil Glass Cloth Tape 0.15mm

0.15mm aluminium foil adhesive tape

Product Description

FLAME RETARDANT ALUM.FOIL FIBERGLASS CLOTH TAPE, high temperature fire protection adhesive tape

PRODUCT DESCRIPTION

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance Rubber Resin adhesive, protected by an easy-release silicone release paper.

FEATURES

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes BondTape AG-1805HK an excellent vapor barrier.

• Service Temperature range from -10 ~ +80 °C.

TYPICAL PHYSICAL PROPERTIES

Physical Properties	Value (Metric)	Test Method
Backing Thickness um	0.150±0.015mm	PSTC-133
Total Thickness um	0.250±0.025mm	PSTC-133
Adhesive weight g/m2	140±14 g/m2	Scale
Adhesion to steel N/25mm	≥22N/25mm	PSTC-101
Ball Tack (Steel ball #)	≥25 #	JIS Z0237
Service Temperature	------------	-10 ~ +80 °C
Applying Temperature	-----------	+10~ +40°C
Fire Rating	Less 25 / 50	UL 723 / ASTM E84
Fire Rating	Class O	BS476 Pt 6 & 7

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
