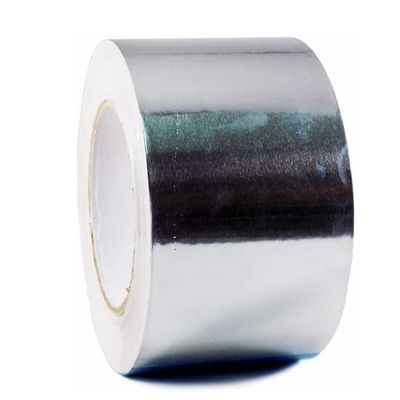

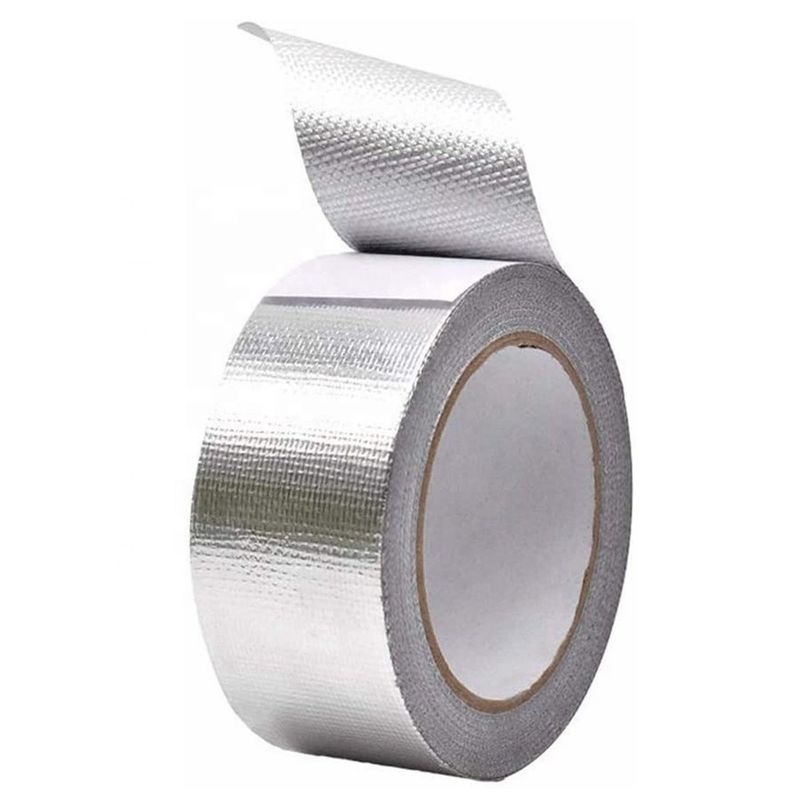

High Strength Aluminium Foil Waterproof Tape Flame Retardant

MOQ:	10,000squre meter
Price:	by quote
Standard Packaging:	Export carton case and pallet
Delivery Period:	30 working days
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

AG1825R

Backing Material:

Al Foil Laminated Glass Cloth

Adhesive Type:

High Performance Flame Retardant Solvent Acrylic Adhesive

Service Temperature Range:

-30 ~ +120 °C

Backing Thickness:

150 Micron

Total Thickness:

180um

Fire Rating:

Class O

Cut Roll Width:

48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Highlight:

High Strength aluminium foil waterproof tape

aluminium foil waterproof tape Flame Retardant

180um aluminium foil sealing tape

Product Description

Al-Foil Facing Fabric Adhesive Tape, Flame Retardant High Strength, Aluminium Foil Laminated Fiberglass Cloth

PRODUCT DESCRIPTION

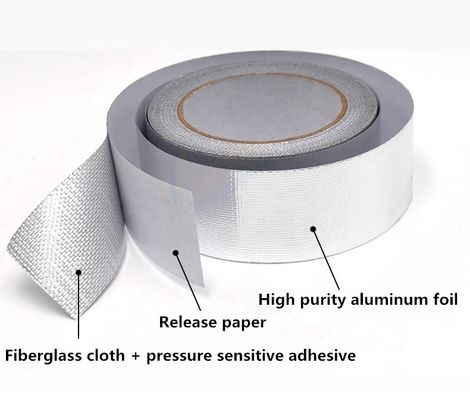

Aluminum-Glass Cloth backing (18u Foil / FR Glue / 8x8 Mesh Glass Cloth), combined with a high performance flame retardant solvent acrylic adhesive, protected by an easy-release silicone release paper.

FEATURES

• Aluminum-Glass Cloth backing provides excellent reflection of both heat and light.

• High quality adhesive with super strong adhesion and holding power offers reliable and durable Aluminum-Glass Cloth Facing joints and seams sealing in industrial pipe thermal insulation application,

• Low moisture vapor transmission rate makes AG1825R an excellent vapor barrier.

• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F)

TYPICAL PHYSICAL PROPERTIES

PROPERTIES	METRIC	TEST METHOD
Backing Thickness	150 ±10% Micron	PSTC-133
Total Thickness	180 ±10% Micron	PSTC-133
Adhesive weight g/m2	60±5 g/m2	Scale
Adhesion to Steel	≥20 N/25mm	PSTC-101
Ball Tack(Steel ball #)	≥23 #	JIS Z0237
Service Temperature	-30 ~ +120 °C	------------
Fire Rating	Less 25 / 50	UL 723 / ASTM E84
Fire Rating	Class O	BS476 Pt 6 & 7

TYPICAL APPLICATIONS: HVAC industry for joining and sealing Alum.-Glass Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").

Roll width:1000mm,1200mm

Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
