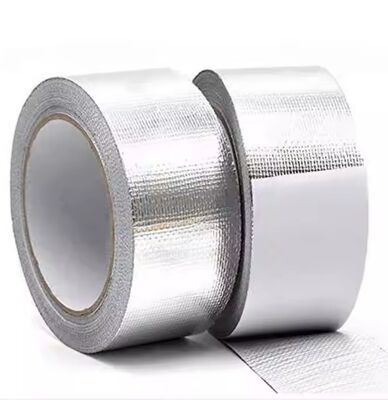

Aluminum Foil Fiberglass Cloth Tape with Flame-Retardant Adhesive
  • name
  • name

Aluminum Foil Fiberglass Cloth Tape with Flame-Retardant Adhesive

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
UN.Tex
Structure:
Foil + Flame-retardant Solvent Adhesive + Fiberglass Cloth
Total Thickness:
140 Um
Foil Thickness:
7 Um
Adhesive:
Flame-retardant Solvent Adhesive
Fabric Weight:
100 G/m²
Fabric Density:
12*12 Yarn/cm
Adhesion To Steel:
20 N/25mm
Tack Rolling Ball:
10 Cm
Tensile Strength:
255 N/25mm
Elongation:
5.0 %
Service Temperature:
-30 ~ +120 ℃
Applying Temperature:
+10 ~ +40 ℃
Highlight:

aluminum foil fiberglass cloth tape

,

flame-retardant adhesive tape

,

aluminum foil glass cloth tape

Product Description
Aluminum Foil Fiberglass Cloth Tape with Flame-Retardant Adhesive
Product Overview

Aluminum Foil Fiberglass Cloth Tape is a composite adhesive tape made from aluminum foil, fiberglass cloth, and a flame-retardant solvent adhesive. The aluminum foil surface provides a continuous metallic layer, while the fiberglass cloth backing provides mechanical reinforcement. With a total thickness of 140 microns, 7-micron aluminum foil, and 100 g/m² fiberglass cloth, this tape is designed for applications that require a combination of aluminum foil coverage, fiberglass reinforcement, and adhesive bonding.

Technical Parameters
Property Specification
Structure 7 μm foil + Flame-retardant solvent adhesive + 100 g/m² Fiberglass Cloth
Total Thickness 140 μm
Key Features
  • Flame-Retardant Solvent Adhesive: A flame-retardant solvent adhesive is used to provide adhesive bonding between the tape and the application surface.
  • Reinforced Mechanical Performance: The fiberglass cloth backing has a density of 12 × 12 yarn/cm. The finished tape provides a tensile strength of 255 N/25 mm and an elongation of 5.0%.
Applications

Aluminum Foil Fiberglass Cloth Tape can be used where an aluminum foil surface, fiberglass reinforcement, and adhesive bonding are required. Typical applications can include thermal insulation systems, HVAC insulation, duct insulation, pipe insulation, and industrial insulation assembly, subject to the specific application requirements.

Frequently Asked Questions
What is aluminum foil fiberglass cloth tape?
Aluminum foil fiberglass cloth tape is an adhesive tape consisting of aluminum foil, fiberglass cloth, and a flame-retardant solvent adhesive. The fiberglass cloth provides reinforcement to the aluminum foil-based tape structure.
What is the thickness of this aluminum foil fiberglass tape?
The total thickness is 140 microns, including a 7-micron aluminum foil layer and the fiberglass cloth structure.
Tags:

0.15mm Aluminum Foil Glass Cloth Tape,

Flame Retardant Aluminum Foil Glass Cloth Tape,

Aluminum Foil Glass Cloth Tape Self Adhesive
