High Strength Polyester Resin Prepreg Glass Fiber Banding Tape

Products

Heat Resistant Insulation Tape

Aluminum Foil Glass Cloth Tape

Aluminum Foil Fiberglass Cloth

Electrical Insulation Board

info@un-tex.com

0086-13052726305

Contact Now

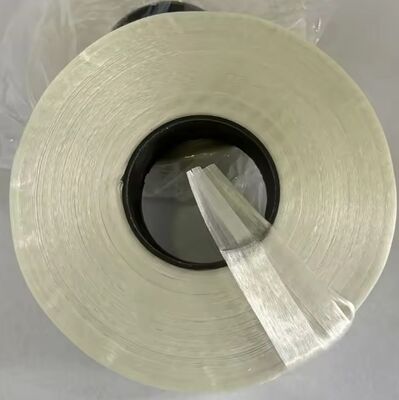

High Strength Polyester Resin Prepreg Glass Fiber Banding Tape

Price:	based on size and quantity
Standard Packaging:	cartons and pallets
Delivery Period:	about 20 days
Payment Method:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

CHINA

Brand Name

UN.TEX

Model Number

H200-W

Document

Product Name:

Polyester Resin Impregnated Glass Banding Tape

Material:

E-Glass Fiber

Thickness:

0.3mm

Volatile Content:

Resin Content:

26%±2

Tensile Strength Before Curing:

≥2000 N/cm

Tensile Strength Of Ringlike Sample At Room Temp. After Curing:

≥1000 Mpa (20°C)

Tensile Strength Of Ringlike Sample At Working Temp. After Curing:

≥700 Mpa (200°C)

Product Description

High Strength Polyester Resin Prepreg Glass Fiber Banding Tape

Product Overview

Polyester Resin Pre-Impregnated Glass Fiber Banding Tape is manufactured from premium glass fiber non-woven fabric impregnated with thermosetting polyester resin. After heat curing, the tape forms a rigid, high-strength composite structure with excellent mechanical properties, thermal stability, and electrical insulation performance.

Technical Parameters

Thickness	0.3mm
Tensile strength before curing	≥2000 N/cm

Key Features

High Mechanical Strength: After curing, the tensile strength can exceed 1000 MPa, providing reliable reinforcement while reducing the number of winding layers required.
Excellent Heat Resistance: Maintains tensile strength above 700 MPa at 200 °C, ensuring long-term stability in high-temperature operating environments.
Excellent Electrical Insulation: The non-metallic structure provides insulation properties suitable for motors, transformers, and electrical equipment.

Typical Applications

Motor Rotor End Winding Banding: Used for high-voltage and large industrial motors to secure rotor end windings and improve operational reliability.
Transformer Core Clamping: Provides non-magnetic mechanical reinforcement for transformer core tie plates and insulation structures.

Frequently Asked Questions

Can this tape replace steel wire banding?
Yes. In many motor and transformer applications, cured prepreg glass fiber banding tape can replace traditional steel wire banding while reducing weight and eliminating eddy current losses.
Is the tape supplied ready for use?
Yes. The product is pre-impregnated with thermosetting polyester resin and can be directly wound before heat curing.

Related Keywords

Polyester Resin Prepreg Tape Glass Fiber Banding Tape Pre-Impregnated Glass Fiber Tape Electrical Insulation Banding Tape

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Turki

Saudi Arabia Jan 16.2026

Helpful (2)

Exactly what I was looking for. Great product.

William

United Kingdom Nov 20.2025

Helpful (2)

Thanks to UN.Tex for the tape.

Tags:

Products

Price:	based on size and quantity
Standard Packaging:	cartons and pallets
Delivery Period:	about 20 days
Payment Method:	T/T

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

UN.TEX

Model Number

H200-W

Document

Technical data sheet - 0.3m...-W.pdf

Product Name:

Polyester Resin Impregnated Glass Banding Tape

Material:

E-Glass Fiber

Thickness:

0.3mm

Volatile Content:

≤ 2%

Resin Content:

26%±2

Tensile Strength Before Curing:

≥2000 N/cm

Tensile Strength Of Ringlike Sample At Room Temp. After Curing:

≥1000 Mpa (20°C)

Tensile Strength Of Ringlike Sample At Working Temp. After Curing:

≥700 Mpa (200°C)

Price:

based on size and quantity

Packaging Details:

cartons and pallets

Delivery Time:

about 20 days

Payment Terms:

T/T

Product Description

High Strength Polyester Resin Prepreg Glass Fiber Banding Tape

Product Overview

Technical Parameters

Thickness	0.3mm
Tensile strength before curing	≥2000 N/cm

Key Features

High Mechanical Strength: After curing, the tensile strength can exceed 1000 MPa, providing reliable reinforcement while reducing the number of winding layers required.
Excellent Heat Resistance: Maintains tensile strength above 700 MPa at 200 °C, ensuring long-term stability in high-temperature operating environments.
Excellent Electrical Insulation: The non-metallic structure provides insulation properties suitable for motors, transformers, and electrical equipment.

Typical Applications

Motor Rotor End Winding Banding: Used for high-voltage and large industrial motors to secure rotor end windings and improve operational reliability.
Transformer Core Clamping: Provides non-magnetic mechanical reinforcement for transformer core tie plates and insulation structures.

Frequently Asked Questions

Can this tape replace steel wire banding?
Yes. In many motor and transformer applications, cured prepreg glass fiber banding tape can replace traditional steel wire banding while reducing weight and eliminating eddy current losses.
Is the tape supplied ready for use?
Yes. The product is pre-impregnated with thermosetting polyester resin and can be directly wound before heat curing.

Related Keywords

Polyester Resin Prepreg Tape Glass Fiber Banding Tape Pre-Impregnated Glass Fiber Tape Electrical Insulation Banding Tape
