Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape

Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape

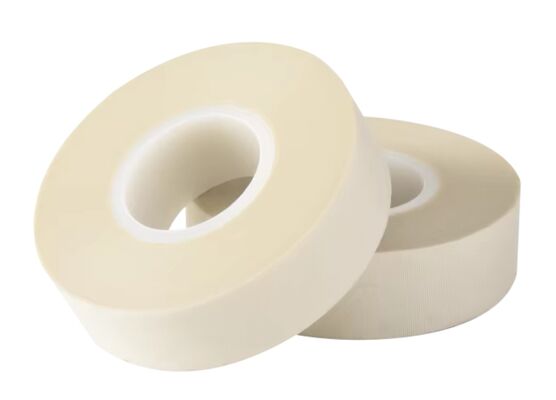

Large Image :  Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 6361
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: by quote
Packaging Details: Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Delivery Time: 30days
Payment Terms: T/T,D/P,L/C
Supply Ability: 10,000m2
Contact Now

Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape

Description
Color: White Backing Material: E-fiber Glass Cloth
Total Thickness: 180 Micron Glass Cloth Thickness: 120 Micron
Operating Temperature H-Class: -30°C To +180°C Adhesive Type H-Class: High-Temp Silicone
Breakdown Voltage H-Class: ≥2.5kV Tensile Strength: ≥210N/10mm
Thermal Grade: H Class Usage: Wrapping Transformer Coil Leads
Highlight:

180 micron Adhesive Insulation Tape

,

120 micron Electrical Insulation Tape

,

≥2.5kV Silicone Adhesive Tape

Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Product Description
The flame-retardant white insulation tape is made of E-grade fiberglass cloth combined with silicone pressure-sensitive adhesive, with a thickness of 0.18mm and an insulation class of H. It offers excellent electrical insulation, mechanical strength, and high-temperature resistance, making it suitable for reliable insulation protection in high-temperature applications such as motors and transformers.
Technical Parameters
Parameters Value
Base Cloth Thickness 0.120±0.01mm
Total Thickness 0.180±0.01mm
BDV ≥2.5KV
Tensile strength ≥210N/10mm
Thermal grade H class
Adhesive Type H-Class High-Temp Silicone
Service Temp. -30~180℃
Advantages
  • Excellent Heat & Flame Resistance: Withstands up to 180°C while inhibiting flame spread, ensuring safe operation in high-temperature environments.
  • High Insulation & Structural Strength: Features high breakdown voltage and tensile resistance, delivering reliable insulation and durable physical protection in demanding conditions.
  • Stable Adhesion & Long Shelf Life: Provides strong, heat-resistant bonding to steel surfaces and maintains performance for up to 12 months under standard storage.
Applications
  • Insulation for High-End Motors & Transformers: Built for Class H systems, it operates reliably at 180°C, preventing aging-related short circuits to ensure long-term equipment safety.
  • Battery Safety Enhancement: Creates multi-layer protection through tight wrapping, with specialized materials that resist electrolyte leakage and mitigate thermal runaway.
  • High-Temperature Industrial Protection: Offers thermal insulation and mechanical durability to shield critical components from heat, extending equipment lifespan.
