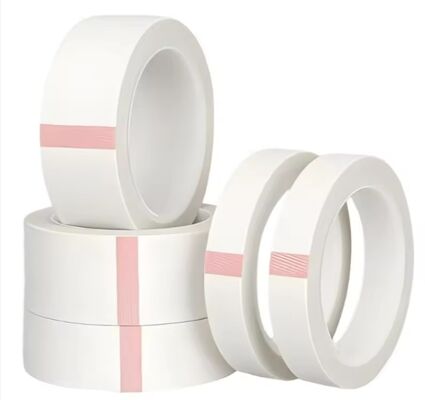

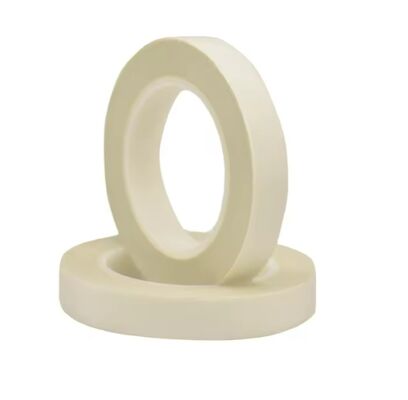

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape

Large Image :  F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: 661
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: by quote
Packaging Details: Each column shrink packed and then in export carton.
Delivery Time: 30days
Payment Terms: T/T,D/P,L/C
Supply Ability: 10,000m2
Contact Now

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape

Description
Backing Material: E-fiber Glass Cloth Backing Thickness: 120um
Total Thickness: 170um Adhesive Type F-Class: Acrylic Pressure-Sensitive
Tensile Strength: ≥240N/10mm Breakdown Voltage F-Class: ≥2.0kV
Service Temp.: -14°C ~ +160°C Thermal Grade: F Grade
Cut Roll: 10mm~500mm Width Roll Length: 30m±0.3m
Highlight:

0.17mm Thickness Adhesive Insulation Tape

,

160°C Continuous Use Fiberglass Cloth Tape

,

2.0kV Breakdown Voltage Acrylic Adhesive Tape

F-class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
Product Description
The F-class Adhesive Insulation Tape is made with an electronic-grade fiberglass cloth backing and a high-temperature resistant acrylic pressure-sensitive adhesive, with a thickness of only 0.17mm. It provides excellent electrical insulation and mechanical strength while ensuring stable performance under high temperatures.
Technical Parameters
Parameters Value
Base Cloth Thickness 0.120±0.01mm
Total Thickness 0.170±0.01mm
BDV ≥2.0KV
Tensile strength ≥240N/10mm
Thermal grade F class
Adhesive Type H-Class Pressure-sensitive Acrylic Adhesive
Service Temp. -14~160℃
Advantages
  • Excellent Heat Resistance: Rated for 160°C continuous use, 180°C short-term. Maintains stability without deformation.
  • Strong Adhesion: High tensile strength, tear-resistant. Conforms to irregular surfaces and removes cleanly.
  • Reliable Insulation: 2.0kV breakdown voltage, F-class rated. Ensures electrical safety with mechanical durability.
  • Easy Handling: Unwinds smoothly without residue. 12-month shelf life in moisture-proof packaging.
Applications
  • Electrical Insulation: For tightly binding heat-resistant (Class F) components like motors and transformers.
  • Battery Insulation: Provides durable insulation for lithium-power battery packs.
  • Pipe Protection: Used for wrapping and insulating high-temperature pipelines.
  • Surface Protection: Protects irregular metal / composite surfaces with strong adhesion.

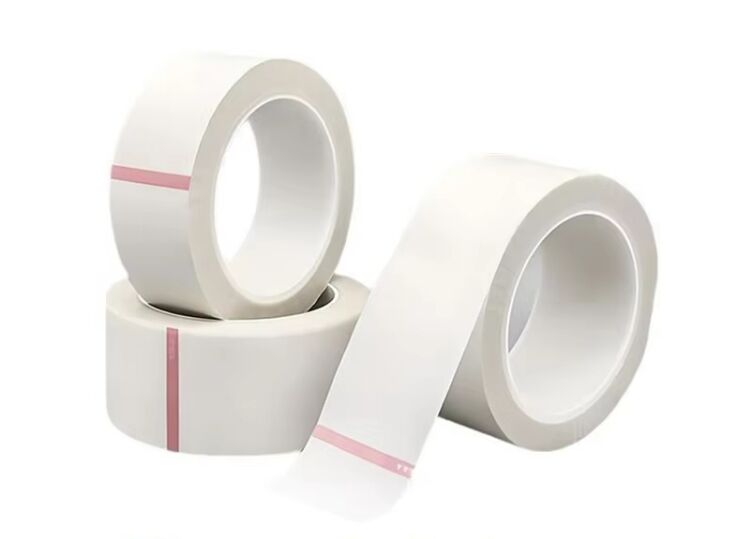

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape 0
