High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation

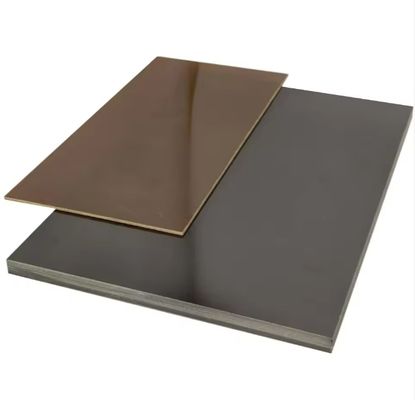

Large Image : High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation

Product Details:

Place of Origin:	China
Model Number:	3250

Payment & Shipping Terms:

Minimum Order Quantity:	1000kgs
Price:	basing on size and quantity
Packaging Details:	pallet
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	200000kgs per month

Contact Now

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation

Description

Thickness:	1mm / 2mm	Density:	1.8-2.0 G/cm3
Water Absorption:	≤ 0.5%	Tensile Strength (MD):	≥300MPa
Vertical Electric Strength:	≥ 14.2 KV/mm	Parallel Breakdown Voltage:	≥ 35kV
Dielectric Dissipation (50Hz):	≤ 0.04	Relative Permittivity (50Hz):	≤ 5.5
Comparative Tracking Index:	≥ 200	Insulation Resistance (after 24h Immersion In Water):	≥ 5.0 × 10^4 MΩ
Highlight:	High-temperature Class H epoxy laminate , Electrical insulation glass laminate sheet , Epoxy glass sheet for insulation

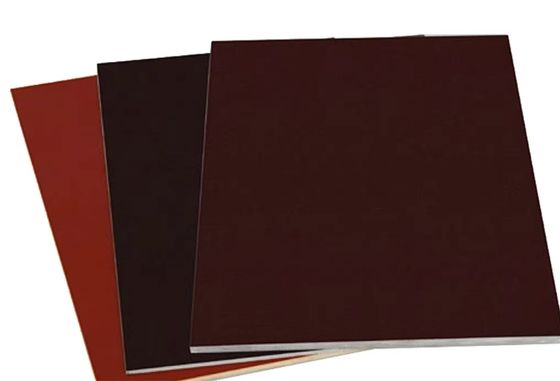

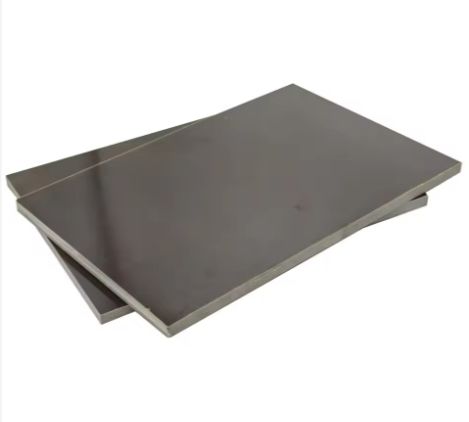

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 0

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 1

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 2

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 3

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 4

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 5

Related Product...

High-Temperature Class H Epoxy Glass Laminate Sheet For Electrical Insulation 6

3240 General-Purpose Phenolic Epoxy Glass Fiber Laminate
